BLA

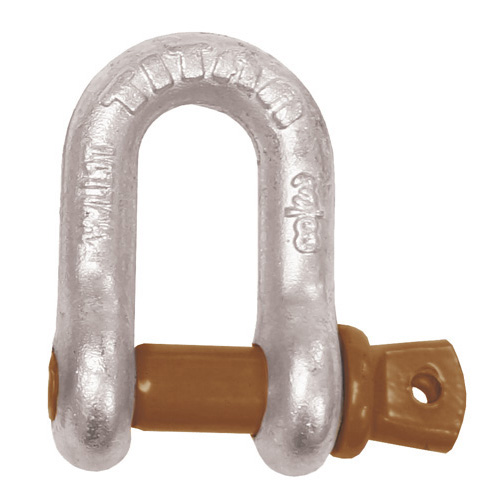

Tested 'D' Shackle - Galvanised

SKU: 143036
$45.30 $50.90

Color
Size

Pickup available at Southport Yacht Club, Macarthur Parade

Usually ready in 2-4 days

View store information

Description

Quality heavy duty tested ‘D’ shackle. Suitable for a wide range of applications.Features hot dipped galvanizing for the body and pin, creating superior corrosion resistance and longevity, plus large tie off hole for pin security making them ideal for use in harsh marine environments. Manufactured to meet or exceed current American standard RR-C-271 Type IV Grade A.
These specifications ensure that each shackle performs to the load rated and proof tested weights as stated with a safety factor of 6 to 1. Conveniently stamped with working load limit and bail size.


Other Details:

BLA Code 143022 143024 143026 143028 143030 143032 143036
Bail Size 6mm 8mm 10mm 13mm 16mm 19mm 25mm
Pin Dia. 8mm 10mm 11mm 16mm 19mm 22mm 29mm
Working Load 500kg 750kg 1000kg 2000kg 3250kg 4750kg 8500kg
Breaking Load 3000kg 4500kg 6000kg 12000kg 19500kg 28500kg 51000kg
d1 4.8mm 5.6mm 6.4mm 9.7mm 11.2mm 12.7mm 14.2mm
e Thread mm 5/16" - 18UNC 3/8" - 16UNC 7/16" - 14UNC 5/8" - 11UNC 3/4" - 10UNC 7/8" - 9UNC 1 1/8" - 7UNC
w 11.9mm 13.5mm 16.8mm 20.6mm 26.9mm 31.8mm 42.9mm
w1 24.1mm 29.5mm 35.8mm 46mm 58.7mm 69.9mm 93.7mm
l 35.1mm 42.2mm 51.6mm 68.3mm 84.8mm 100.8mm 128.8mm
