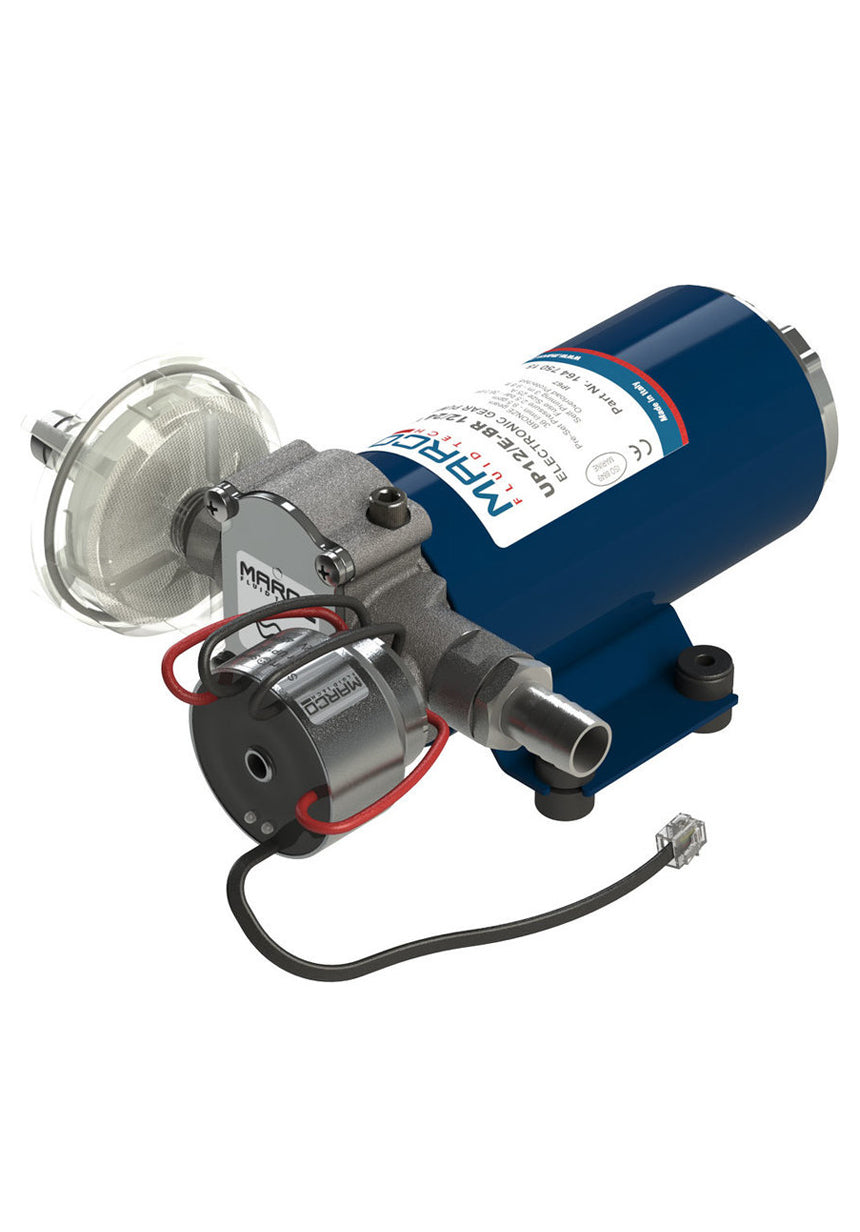

MARCO ADJUSTABLE SPEED ELECTRONIC PRESSURE PUMPS UP12/E-BR

SKU: 16475015

$1,199.95

Description

Self-priming automatic electric pump, 12/24V, with constant pressure electronic control for the transfer of diesel and oil. Bronze gears, NBR check valve, body and connections in nickeled brass, stainless steel shaft. FKM seal and NBR O-rings. Helical bronze gears guarantee constant pressure, heavy duty cycles, less noise and can operate in the absence of liquid. The pumps are supplied with a “High-Speed” setting for Diesel transfer. The integrated SCS control panel allows the switch to the “Low-Speed” mode for the transfer of oil and viscous liquids.

Part n.	16475015
Product Name	UP12/E-BR
Voltage (V)	12/24
Consumption (A)	14-7
Fuse (A)	25
Self-priming (m)	3.0
Flow rate (l/min)	36
Hose (mm)	16
Pressure (bar)	2.5
Ports (BSP)	1/2″
Motor power (W)	360
Weight (kg)	4.9

SCS 12/24V SPEED CONTROL SYSTEM FOR ELECTRONIC PUMPS

With the control panel for electronic pumps, it is possible to monitor the operation of the pump (run / fail / power / flow and low / high speed) and activate its main functions: on / off, error reset, low speed and high speed. With subsequent low / high button pressures, the best speed can be set based on the viscosity of the transferred liquid. For operation, simply connect the panel to the pump with the supplied 3 m cord or other 4-wire telephone cable and double termination RJ11 / 6. The terminal block on the rear allows control of the pump using external buttons and LEDs. With the USB socket you can access the main pump functionality through software developed by the customer in collaboration with our technical department.
