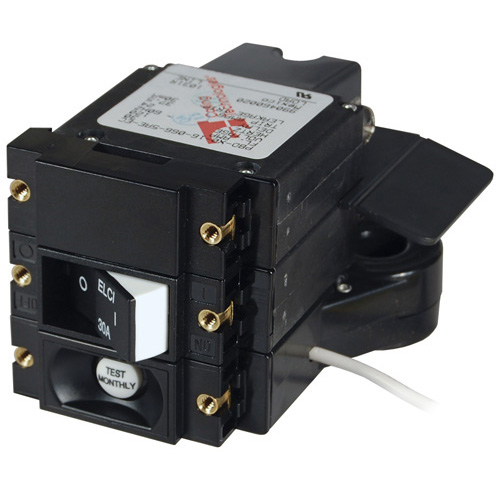

A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A

• Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
• Meets UL 1500 external ignition protection requirements
• Trips on short circuit, overload, or leakage to ground
• Front panel mount-installed in a power distribution panel

  Specifications:
  Amperage: 30A
  Actuator Style: Flat Rocker
  Poles: 2
  Ignition Protected: Yes
  Maximum Voltage: 240V AC 120V AC per pole
  Circuit Breaker Type: Magnetic Hydraulic - trip free
  Interrupt Capacity: 5000A
  Minimum Operating Temperature: -35∞ C
  Maximum Operating Temperature 66∞ C
  Leakage Trip Amps: 30mA
  Mounting Screw: #6-32 Stainless Steel
  Mounting Screw Torque: 6 in-lb (0.68 Nm)
  Switching Cycles: 10000
  Weight: 0.66lb (0.3 kg)
