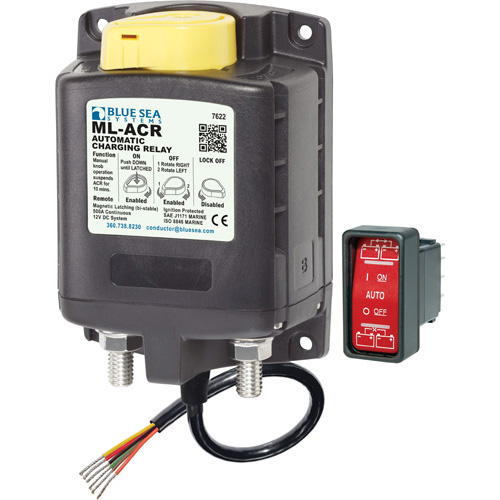

ML-ACR Automatic Charging Relay with Manual Control - Does NOT include Switch Part no. 2146

SKU: BS-7622B

$413.91 $541.95

Color

NA

Size

12V 24V

Description

Manual control switch provides an added level of safety allowing control with or without power, and offering LOCK OFF capability for servicing

Automatically manages the charging of two large battery banks

Allows paralleling of battery banks for emergency starting

500 Ampere continuous rating to support high-output alternators

Magnetic Latch (ML)-ACR draws very low current (<40mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state

Dual sensing-senses charge on both battery banks

Start Isolation (SI)-can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics

Engine Isolation (EI)-can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output

Senses charging on two battery banks

LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, or in Start or Engine isolation

3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance

7/8" (22mm) stud length accepts multiple cable terminals

Silver alloy contacts provide high reliability for switching live loads

Label recesses for circuit identification
