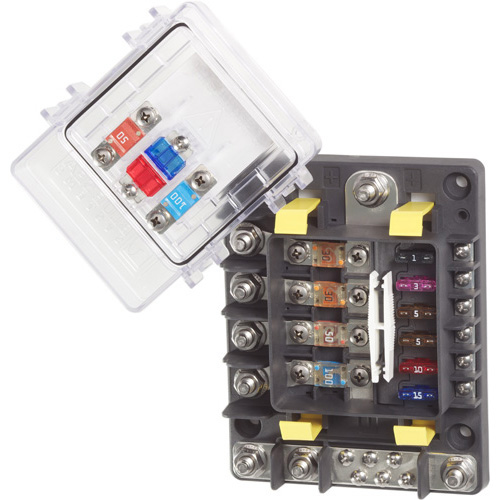

Safety Hub 150 Fuse Block

SKU: BS-7748B

$229.64 $301.95

Description

Accepts four AMI or MIDI Fuses for high-amp circuits up to 200A

Accepts six ATO or ATC Fuses for circuits up to 30A including bilge pumps, electronics and lights

Sealed cover protects fuses from the harsh marine environment and satisfies ABYC/USCG insulation requirements

Negative bus provides common location for negative connection

Circuit identification label with write-on capability

Fuse puller easily removes ATO or ATC Fuses

Cover provides storage space for two spare ATO or ATC and two spare AMI or MIDI fuses and mounting screws

One-piece stainless flange nuts ensure safe and secure connections

Fuses sold separately

Specifications:
Circuits: 10
Stud Size: M8 x 1.25
Operating Voltage 12V 24V 32V
Amperage Maximum Operating - combined: 200A 350A 600A
Recommended Ring Terminal: M8 (5/16")
Screw Torque, 8-32: 18in-lb (2.03 Nm)
Screw Torque, M5: 27in-lb (3.05 Nm)
Stud Torque: 180 in-lb (20.34 Nm)
Weight: 3.50lb (1.59 kg)
