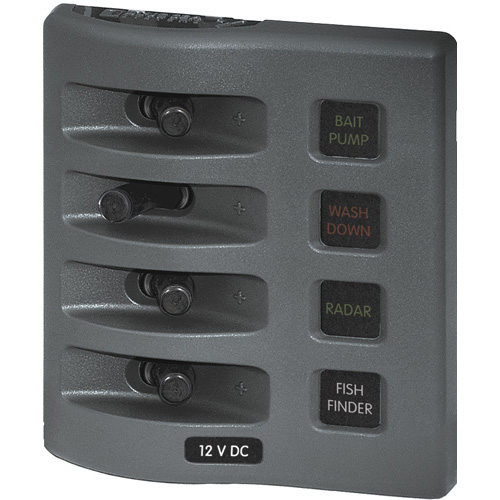

WeatherDeck 12V DC Waterproof Fuse Panel - Gray 4 Positions

• Panel front rated IP67 when properly mounted with watertight mounting gasket
• IP67 ñ protected against immersion up to 1 meter for 30 minutes
• Designed for flybridge and open cockpit applications
• Independent label backlighting circuit for remote switching and dimming
• Available in 2, 4, 6, and 8 circuit models
• Each panel can be mounted in four different orientations
• Integrated ATO/ATC fuse based circuit protection
• Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

  Specifications:
  Weatherproof: Waterproof
  Positions: 4
  Nominal Voltage: 12V DC
  Circuit Protection: Fuse
  Maximum Amperage: 15A @ 12V DC (per circuit)
  Panel Cumulative Rating: 60A
  Backlit Label: Bicolored LED
  Backlighting Amperage: 10mA /Illuminated Circuit
  Backlighting Voltage: 12V DC
  Material: Reinforced Polycarbonate
  Height: 4.30in (109.22 mm)
  Width: 3.88in (98.55 mm)
  Depth: 2.50in (63.5 mm)
  Weight: 0.90lb (0.41 kg)
