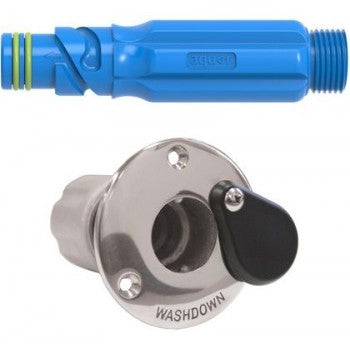

Keep your vessel clean with ease using the Aquor Deck Wash Outlet. Simply push and twist the polymer hose connector into the stainless steel outlet, and water flows starts automatically. The
outlet sits flush with your boat’s deck for safety and accessibility. It’s a revolutionary water connector featuring unmatched ease, convenience, and durability.
Package includes
1 X Stainless Steel Outlet
1 X Polymer Hose Connector (Straight)
HOSE CONNECTOR COLOR: AQUOR BLUE
INLET: 1/2″ NPT (F)
OUTLET: 3/4″ GARDEN HOSE THREAD
Diameter: 73mm
Length: 83mm
Cut out: 35mm
The Deck Fitting includes its own stop valve to shut the water off when the hose connector is removed.
The hose connector simply twist locks into the deck receptacle and the double “O†rings assure a positive seal.
A non-return valve located in the hose connector prevents water from spraying out when the adaptor is removed from the deck fitting.
Suitable for Jabsco and similar Washdown Pumps
FREQUENT QUESTIONS
Does the Deckwash Outlet require installation?
Yes, it’s a flush-mounted outlet that sits within the wall, floor, or other surface you are installing into.
Simply thread in any universal 1/2″ NPT fitting, depending on your type of plumbing (copper, PEX, or other). For the quickest and easiest installation, we recommend installing with PEX tubing. The optional elbow inlet can be positioned in any direction while keeping a watertight seal.
What else do I need to install?
You will need a 1.5″ hole saw, a 1/2″ NPT male-threaded plumbing adapter, teflon tape, and a philips screwdriver.
Can I install it vertically?
Yes! We use a heavy-duty swivel cover for this outlet that can be stepped on.
Keep in mind that if it’s vertically mounted, it will not self-drain like our House Hydrants. This isn’t an issue if you’re installing on a boat or someplace warm, but if there’s a possibility of freezing then you’ll want to drain the valve.
How much clearance do I need?
About 3.5″ minimum with the optional 90° elbow inlet. If you add a plumbing fitting to the standard straight inlet, it’s about 4.5″ total.
What is the flow rate?
6.8 GPM @ 52 PSI.
Will it provide freeze protection?
Only if you have it installed horizontally. Mounted vertically it will not be able to drain.
