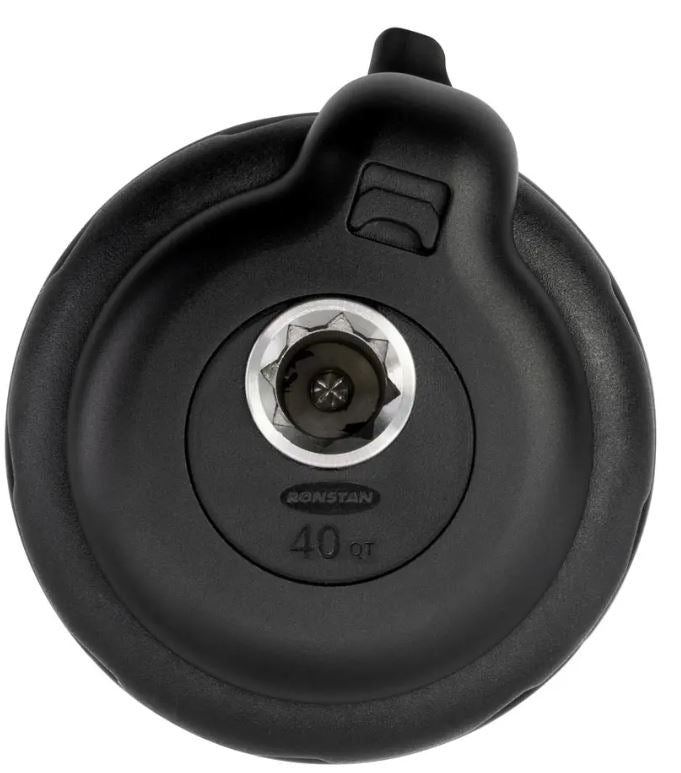

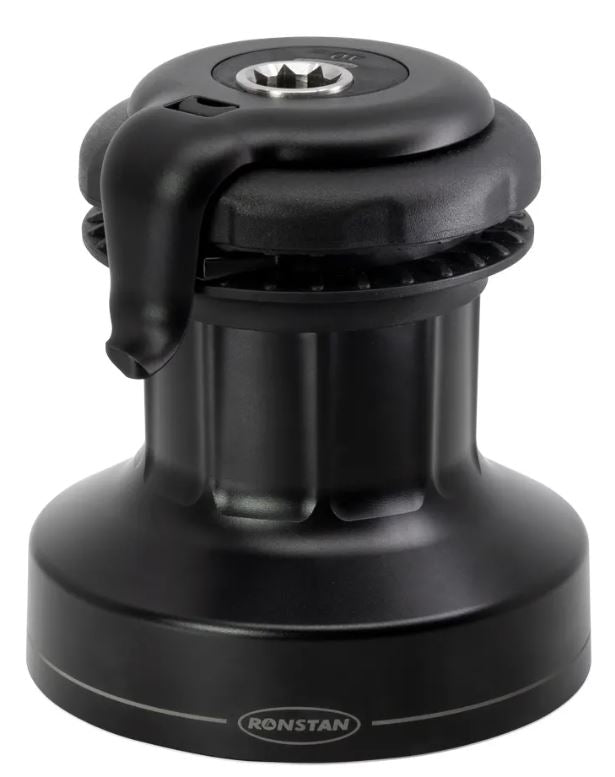

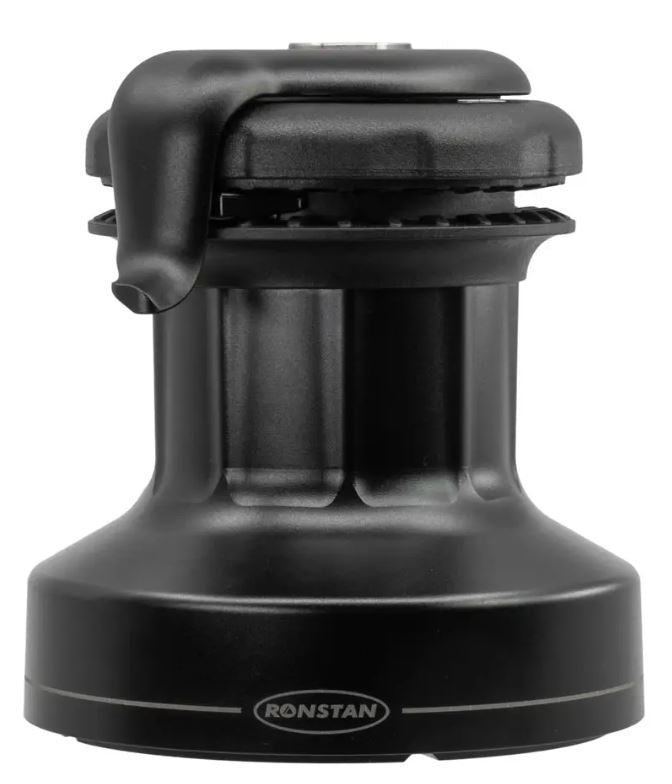

Ronstan 40QT Orbit Winch with QuickTrim RA6402
Description
Lightweight aluminium winch with QuickTrim™ self-tailer, 2 speeds, and Power Ribs™ for controlled grip on the line at all times.
FEATURES
Sprung self-tailing jaws to accept 7 - 12mm line.
QuickTrim™ patented self-tailing feature for rapid sail trim and smooth adjustment.
Ball bearings carry the thrust loads, roller bearings carry the radial loads of the drum to minimize rotational friction.
Proven Andersen winch gearing configuration.
Power Rib™ ensures a controlled grip on the line at all times, whether trimming or easing. Minimal rope wear compared to more abrasive drum surface finishes.
No tools required for configuration and servicing.
Machined aluminum drum – stronger and lighter than traditional cast aluminum drums.
Aluminum Centre stem, lighter weight compared to bronze stems.
Low line entry due to gearing configuration geometry.
Weight (kg) 3.1
Gear ratio 1st speed 1.4:1
Gear ratio 2nd speed 6.8:1
Power ratio 1st speed 8.3:1
Power ratio 2nd speed 39.2:1

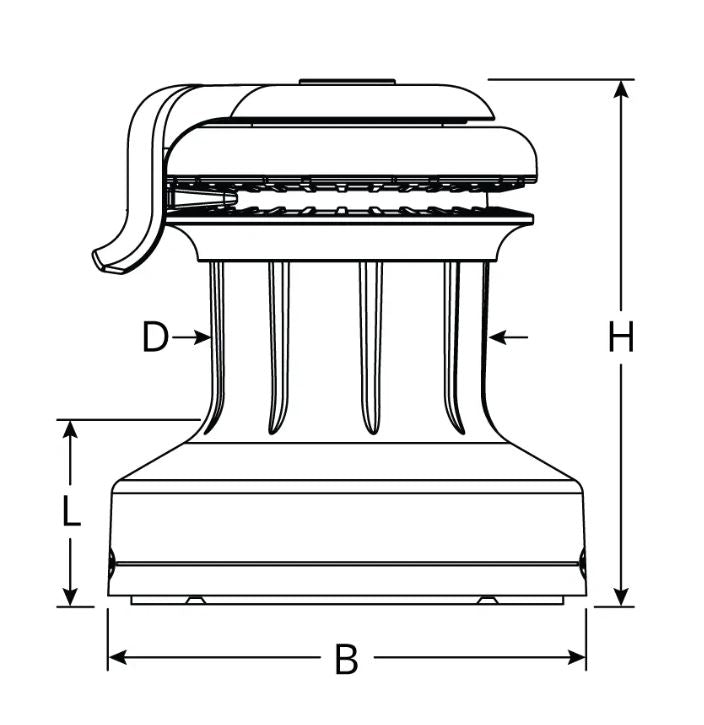

Base "B" Ø (mm) 151
Drum "D" Ø (mm) 86
Height "H" (mm) 166
Line Entry "L" (mm) 57
