FUSION

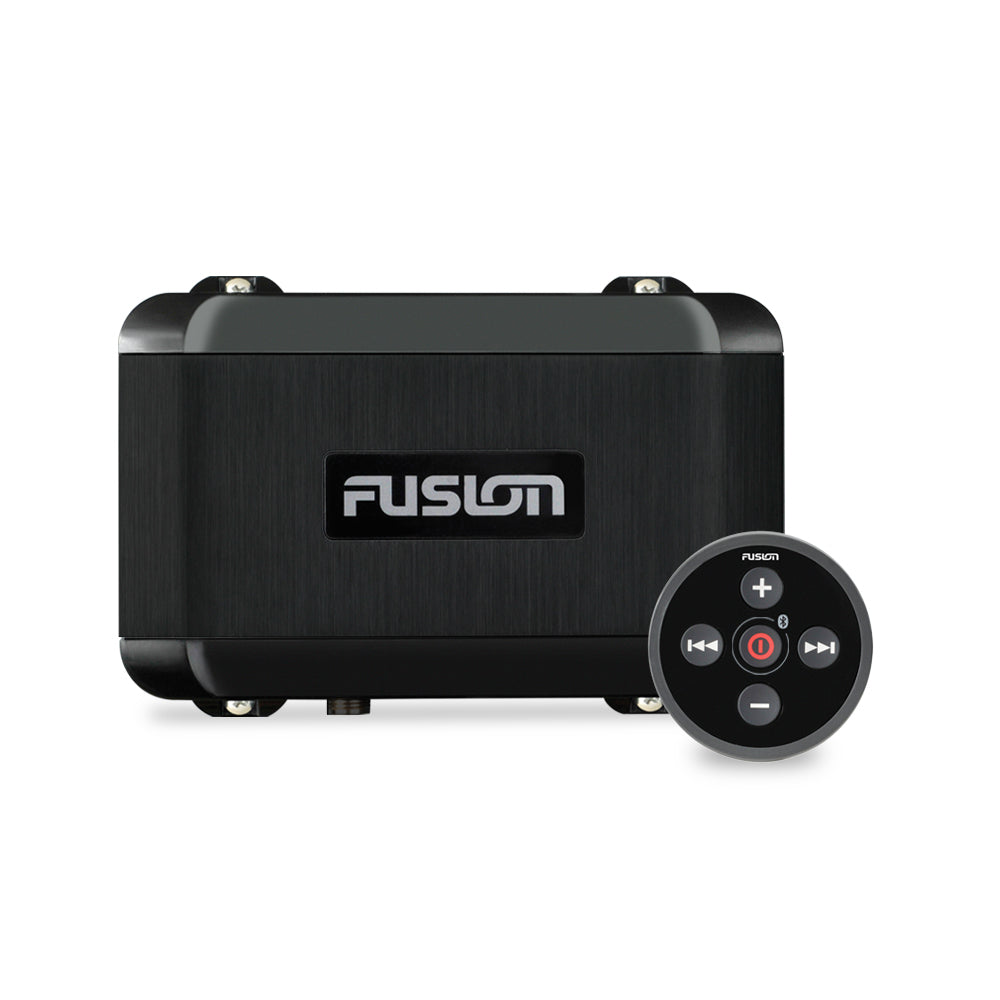

Fusion BB100 Black Box Stereo

SKU: 010-01517-01

$539.00

Pickup available at Southport Yacht Club, Macarthur Parade

Usually ready in 2-4 days

View store information

Description

COMPACT BLACK BOX ENTERTAINMENT SOLUTION

There is no need to compromise on quality audio entertainment due to limited helm space with the value packed Fusion MS-BB100 compact black box entertainment solution.

Compact form factor allows for easy installation on your boat.
Control the BB100 using the included IPX7 wired remote control.
Built-in Class-AB amplifier delivers efficiency with reduced distortion.
Multi-Zone™ technology gives you control of two separate audio zones.
Control your music from a compatible multifunction display (MFD), smart device or Garmin watch.

BLACK BOX DESIGN
Designed to save space at the helm, the compact design of the MS-BB100 allows it to be mounted in out-of-way places such as storage lockers, inside helm consoles and other concealed compartments.

IPX7 WIRED REMOTE CONTROL
An IPX7 rated wired remote control is included in the box for you to control the MS-BB100. You can mount the wired remote with a conventional flush finish or integrate it into the helm for a premium flat finish.

MULTIPLE SOURCE OPTIONS
Take advantage of the many source options available, including BLUETOOTH® technology, AM/FM radio, AUX and USB connections.

SPECIFICATIONS
Physical dimensions	Black Box (HxWxD): 2.63" x 6.10" x 3.70" (60 x 155 x 94 mm) Remote (Diameter x Depth): 2.56" x 2.13" (65 x 54 mm)
Water rating	Black Box: IPX3 (when properly installed) Remote: IPX7 (front panel only, when properly installed)
Power input	10.8-16 VDC
Operating temperature range	32° to 122° F (0° to 50° C)
Current (max.)	15 A
Fuse	15 A
NMEA 2000 LEN	1 (50 mA)
Bluetooth wireless range	Up to 30 ft (10 meters)
ANT Wireless Range	Up to 10 ft (3 m)
Wireless frequencies/protocols	Bluetooth 2.4 GHz @ +1.9 dBm nominal ANT 2.4 GHz @ +1.9 dBm nominal
Compass-safe distance	5.9" (150 mm)

STEREO FEATURES
Built-In Amplifier	Class-AB
Peak Power	200 W
Rated Power Output (4 OHM)	26 W rms x 4 @ 14.4 V input < 10% THD
Fusion-Link™ Control	yes (MFD, smartphone and Garmin watch)
Multi-Zone™ Technology	2 Zones
Bluetooth Wireless Technology	✓
ANT Wireless Technology	✓
DAB+ Ready	Up to 30 ft (10 meters)
NRX Remote Compatibility	✓
Software Updates	USB
Warranty	1 year

SOURCES
Sources	AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x1/AOA/ DAB+ ready (available in Europe and Australia only)

CONNECTIVITY
Auxiliary Input	1 RCA input (AUX)
NMEA 2000	1 port
USB 2.0	1 port
AM/FM Radio	1 Motorola antenna connector port
Speaker	2 connections (2 zone amplified)
RCA Pre-Out (Left, Right and Subwoofer)	2 zones (requires external amplification)
Line Out	2 (1 x L + R per zone, requires external amplification)
Subwoofer Out	1 x mono output (requires external amplification)

What's in the Box?

MS-BB100 media black box
IPX7 wired remote control
One remote control mounting nut (M56)
One remote control mounting gasket
Four 8-gauge, mounting screws
Power and speaker wiring harness
Auxiliary-in, line-out, and subwoofer-out wiring harness
6 ft (2 meter) NMEA 2000® drop cable
Documentation
