Fusion RA210 Marine Stereo

SKU: 010-02250-00
$649.00

Pickup available at Southport Yacht Club, Macarthur Parade

Usually ready in 2-4 days

View store information

Description
INDUSTRY BENCHMARK FOR MARINE ENTERTAINMENT

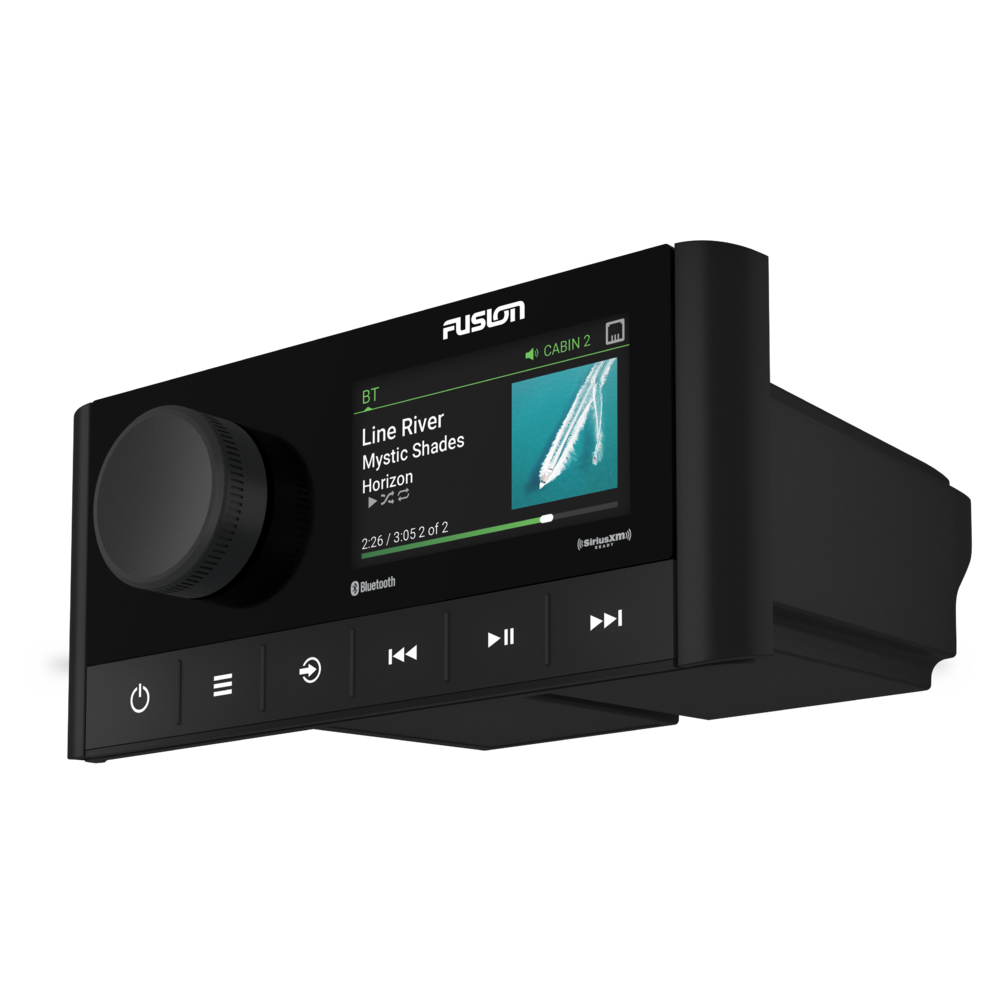

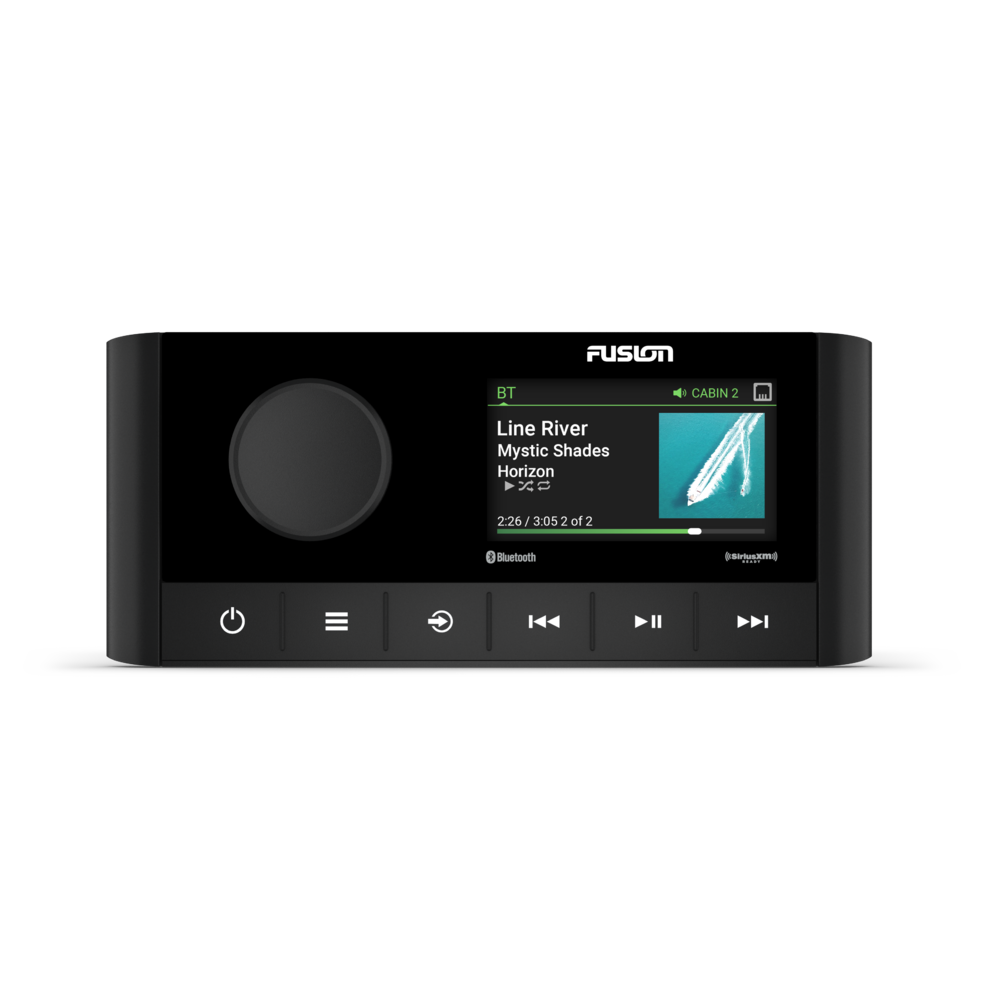

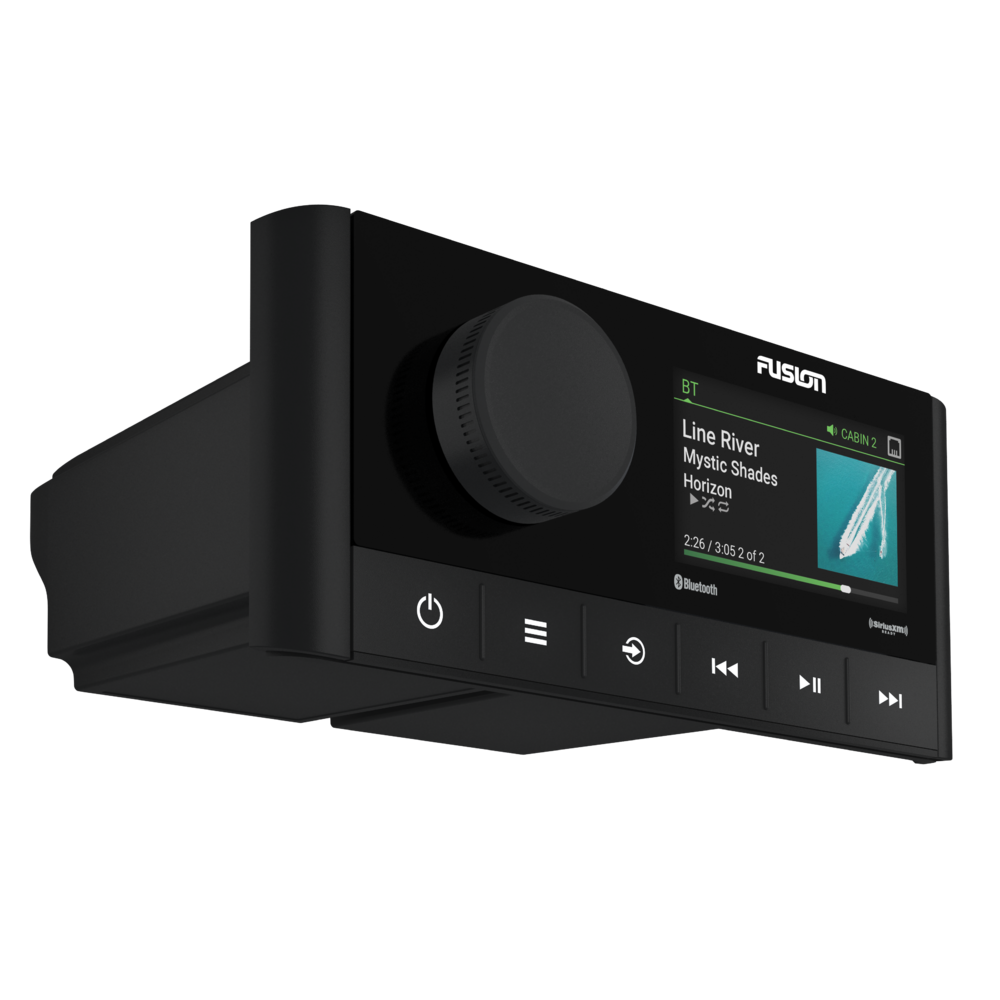

The MS-RA210 marine stereo from Fusion® is a stylish addition to your boat. Incorporating some of the Apollo™ Series’ key features, the stereo includes built-in Digital Signal Processing (DSP) technology, modern design aesthetics, and advanced source options.

  • Custom audio profiles for each zone on your boat deliver superior-quality audio.
  • Enjoy the color album art and metadata that display information about the current track playing.
  • Built-in Class-D amplifier delivers higher efficiency and greater output.
  • Multi-Zone™ Technology gives you control of two separate audio zones.
  • Control your music from a compatible multifunction display (MFD), smart device, or Garmin watch.

IPX6 AND IPX7 INGRESS PROTECTION
Designed and engineered for the harsh marine environment, the MS-RA210 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board.

MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.

FUSION DIGITAL SIGNAL PROCESSING (DSP)
A technically superior listening experience made simple, Fusion DSP optimizes the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels, in every listening environment.

EASY-TO-INSTALL DSP PROFILES
Setting up your DSP profiles is made simple with the free Fusion-Link™ app1. With just a few steps on your compatible smartphone, you can set up the preconfigured DSP profiles once and enjoy listening to high-quality audio customized for your ears and the environment.

FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT
Take advantage of the many source options available, including BLUETOOTH® technology, advanced SiriusXM® features, DAB+ radio, AM/FM radio, AUX and USB connections.

ADVANCED SIRIUSXM FEATURES AVAILABLE
Along with the addition of on-screen album art, a selection of advanced features is now available on SiriusXM.

1Requires app on your compatible smartphone

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc.

SPECIFICATIONS
Physical dimensions
(H x W x D)
2.68" x 6.18" x 4.99" (68 x 157 x 126.6 mm)
Weight 12.4 oz (350 g)
Water rating IPX6 and IPX7 (Front panel only, when properly installed)
Power input 10.8-16 VDC
Operating temperature range 32° to 122° F (0° to 50° C)
Current (max.) 15 A
NMEA 2000® LEN 1 (50 mA)
BLUETOOTH® wireless range Up to 30 ft (10 m)
ANT wireless range Up to 10 ft (3 m)
Wireless frequencies/
protocols
BLUETOOTH 2.4 GHz @ +12 dBm nominal

ANT 2.4 GHz @ +7 dBm nominal
Compass-safe distance 5.9" (150 mm)



STEREO FEATURES
Display 2.7" optically bonded color LCD
Built-in amplifier Class-D (minimum 4 Ohm impedance)
Peak power 200 W
Rated power output (4 Ohm) 26 W rms x 4 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing yes (with preconfigured DSP profiles)
Fusion-Link™ control yes (with MFD, smartphone and Garmin watch)
Multi-Zone™ technology 2 zones
BLUETOOTH wireless technology yes
ANT wireless technology yes
SiriusXM-ready yes (requires SiriusXM Connect vehicle tuner)
DAB+ ready yes (requires DAB100A antenna module)
NRX remote compatibility yes
Multi-language interface Bulgarian, Chinese (Simplified/Traditional), Croatian, Czech

Danish, Dutch, English, Finnish, French, German, Greek

Italian, Japanese, Korean, Norwegian, Polish,

Portuguese (BR/PT), Slovenian, Spanish, Swedish,

Thai, Turkish
Software updates USB
Warranty 1 year



SOURCES
Sources AM / FM / Bluetooth / USB audio / iPhone / iPod / AUX x1 /

MTP / SiriusXM-Ready (USA only, requires optional SiriusXM

Connect vehicle tuner) / DAB+ ready (available in

Europe and Australia only)

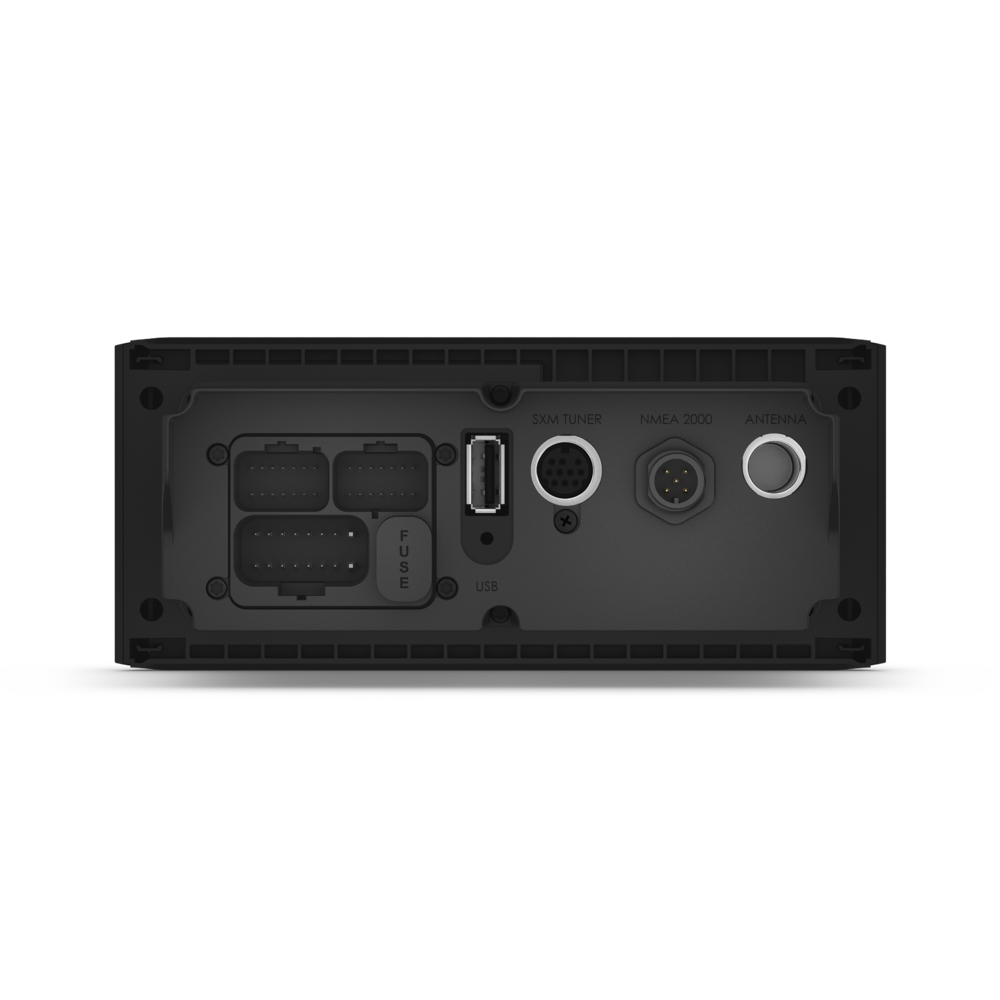

CONNECTIVITY
Auxiliary input One RCA input (AUX)
NMEA 2000 One NMEA 2000 port
USB 2.0 One USB 2.0 port
SiriusXM satellite radio One SiriusXM port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather)
AM/FM radio One Motorola antenna connector port
Speaker 2 x speaker connections (2 zone amplified)
RCA pre-out (left, right and subwoofer) 2 zones (requires external amplification)
Line out 2 (1 x L + R per zone, requires external amplification)
Subwoofer out 1 x mono output (requires external amplification)



What's in the Box?

  • Fusion MS-RA210 marine stereo
  • Mounting gasket
  • Four 6-gauge, self-tapping screws
  • Two screw covers
  • Power and speaker wiring harness
  • Auxiliary-in, line-out, and subwoofer-out wiring harnesses
  • 2 meter (6 ft) NMEA 2000® drop cable
  • 6 ft (2 meter) NMEA 2000 drop cable
  • Documentation
