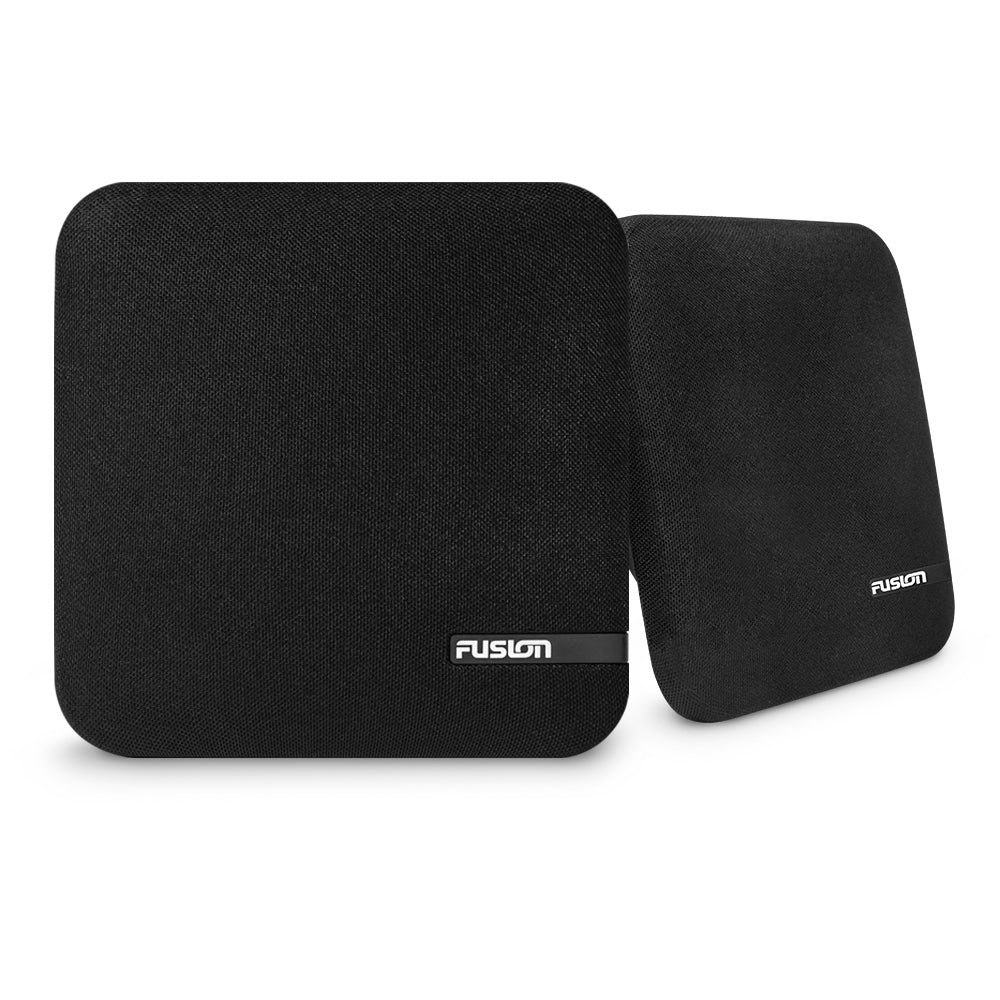

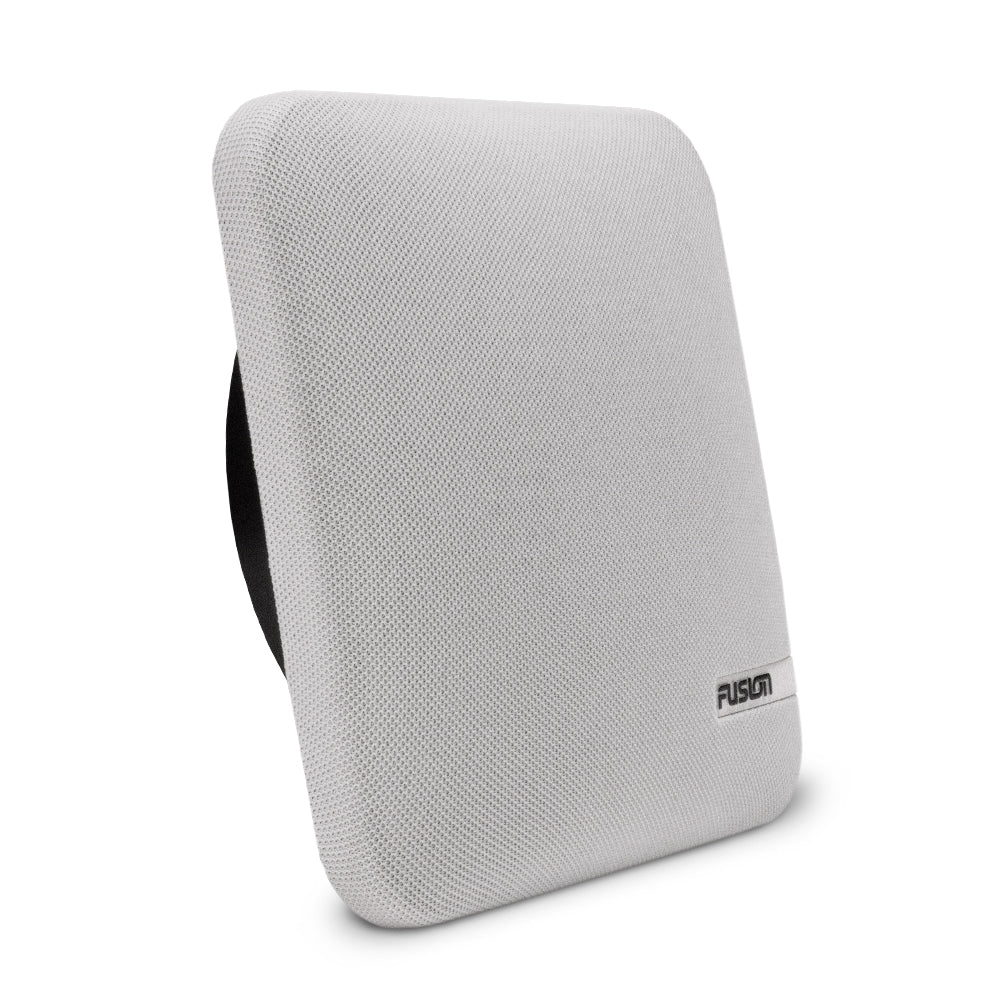

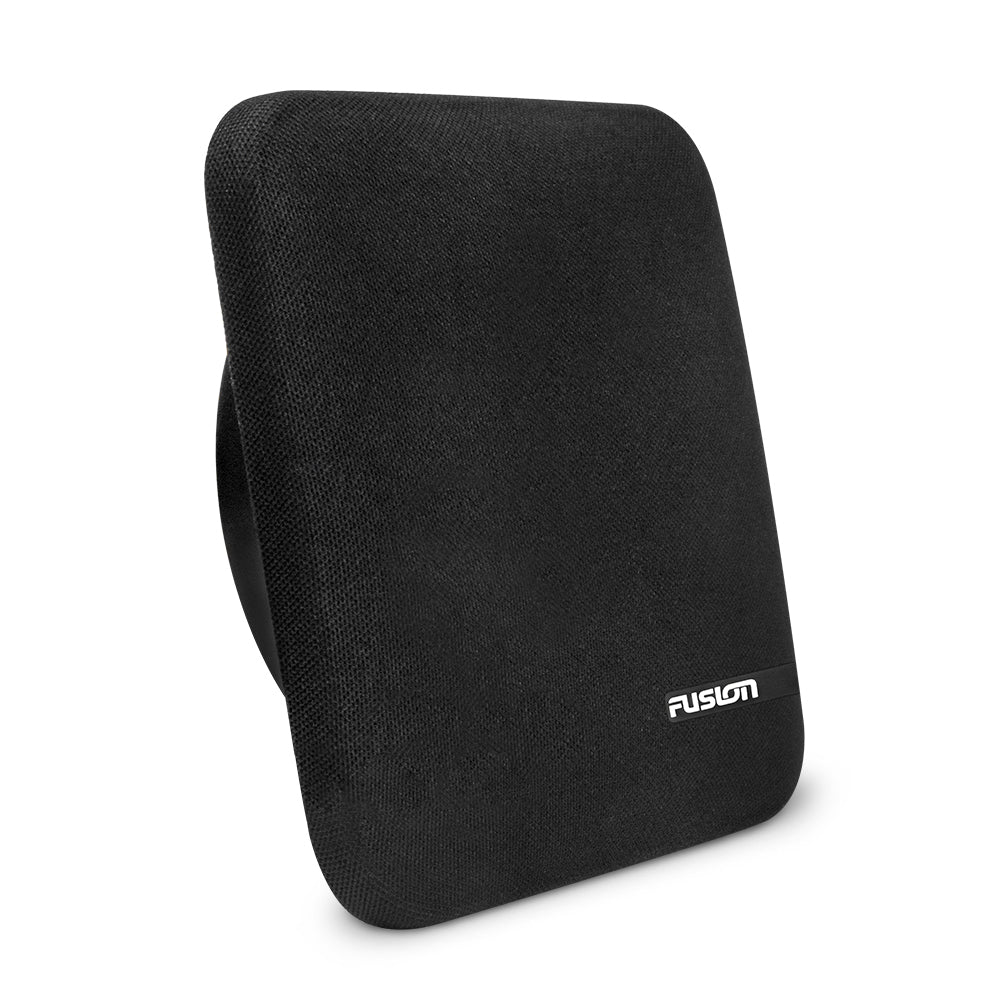

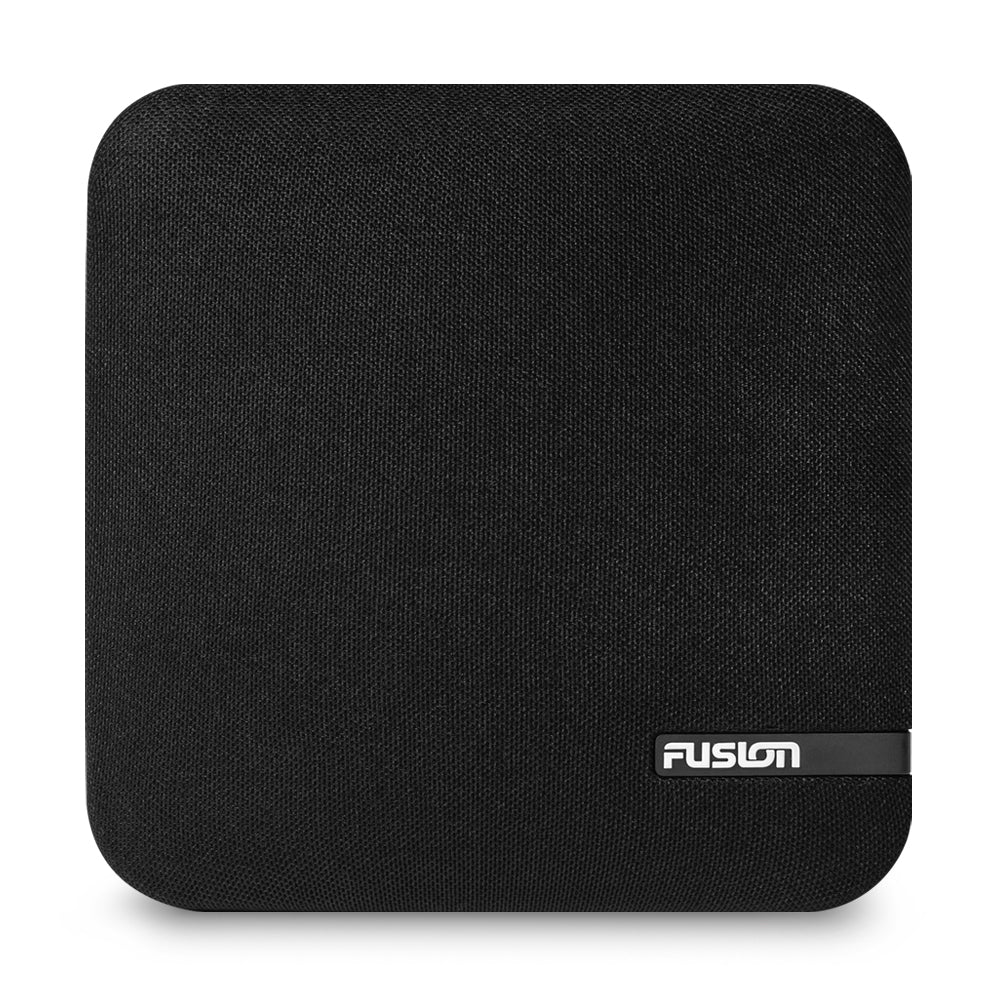

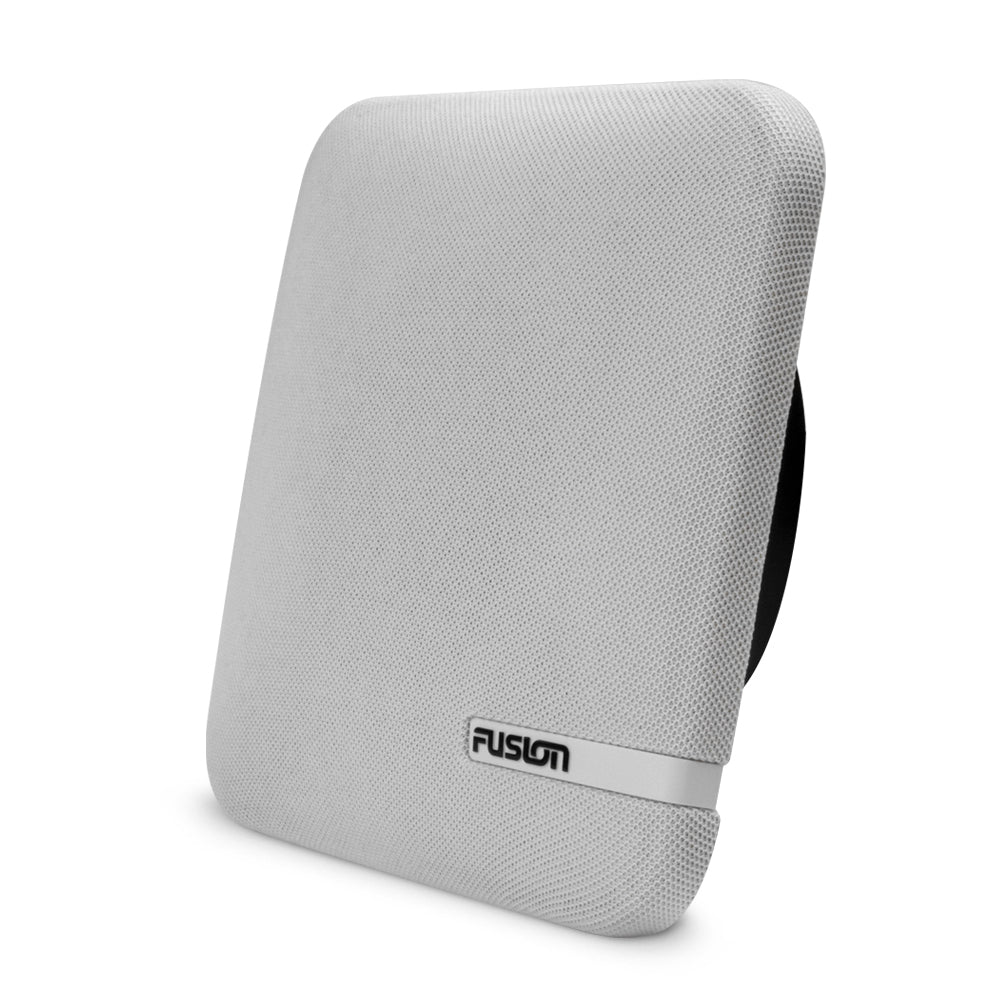

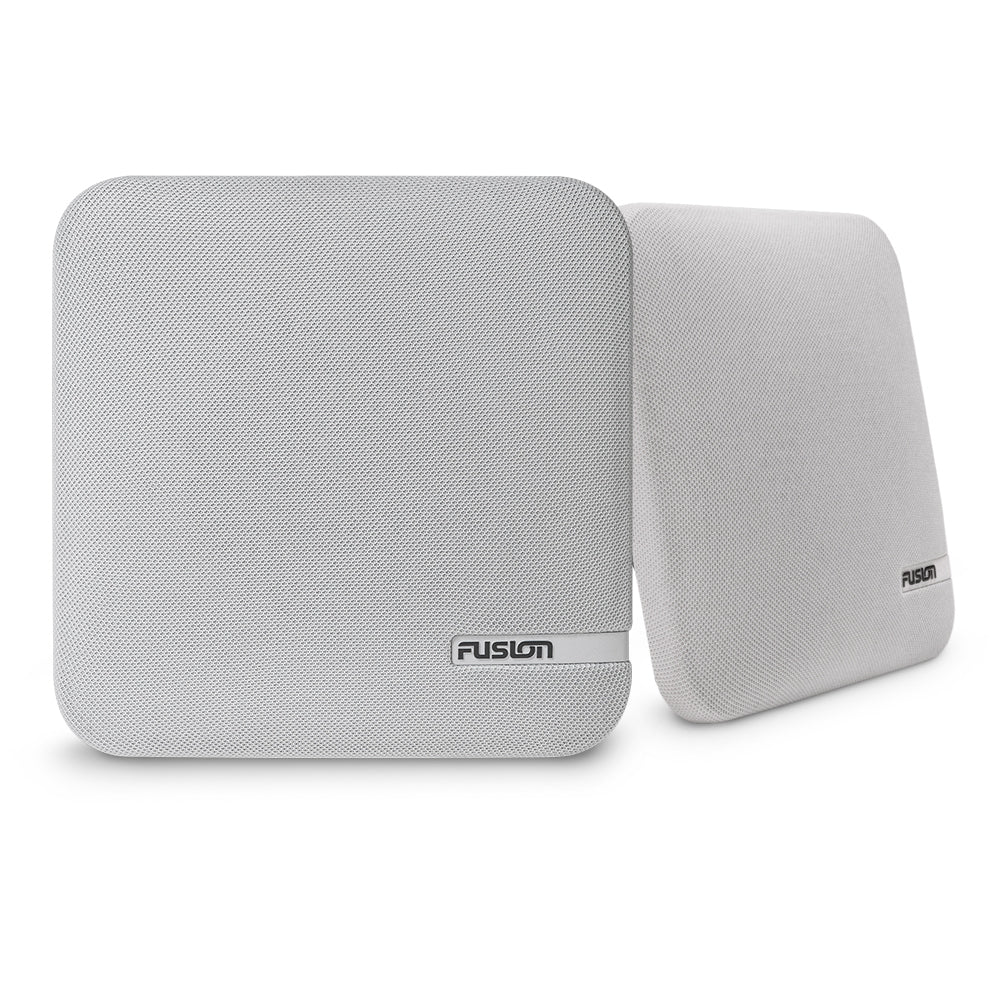

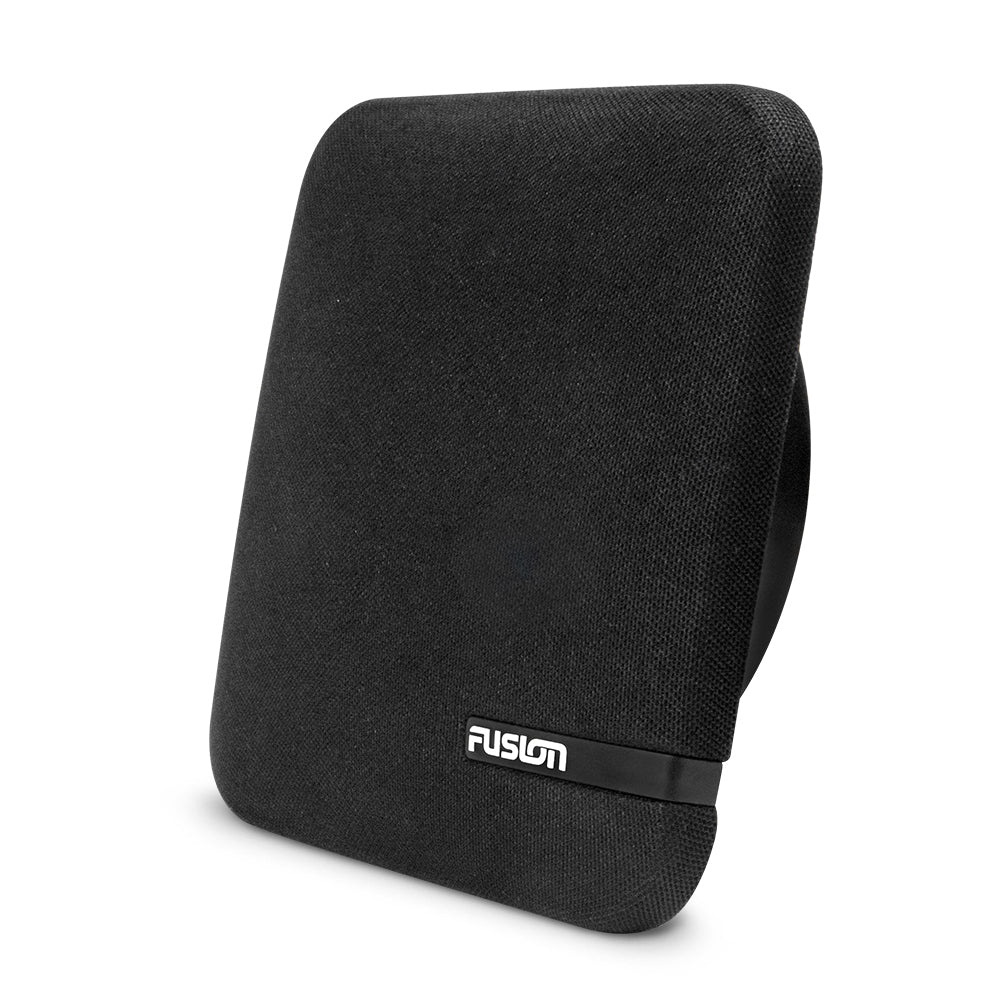

Fusion SM Series Marine Speakers
Description
OPTIMISED QUALITY AUDIO REPRODUCTION
The Fusion SM Series shallow mount speakers are designed for installations where mounting depth is limited, without compromising on sound quality and performance.

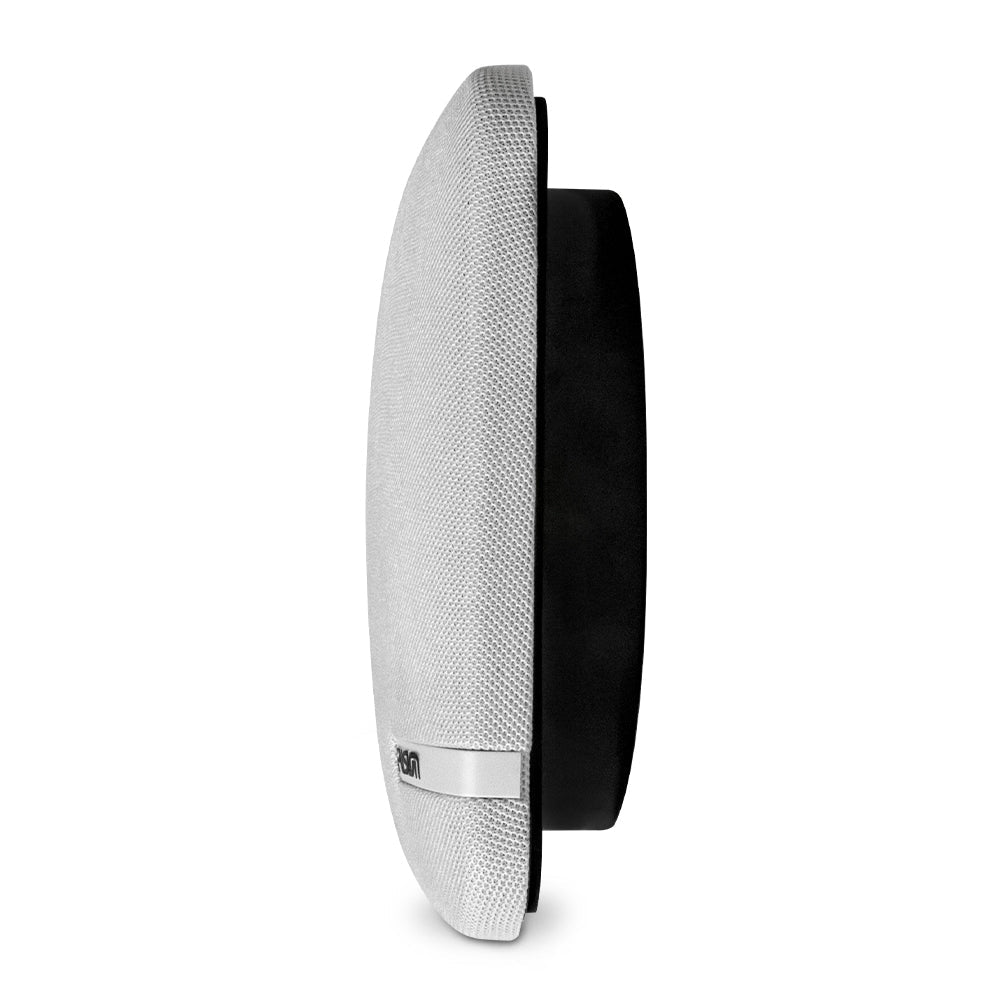

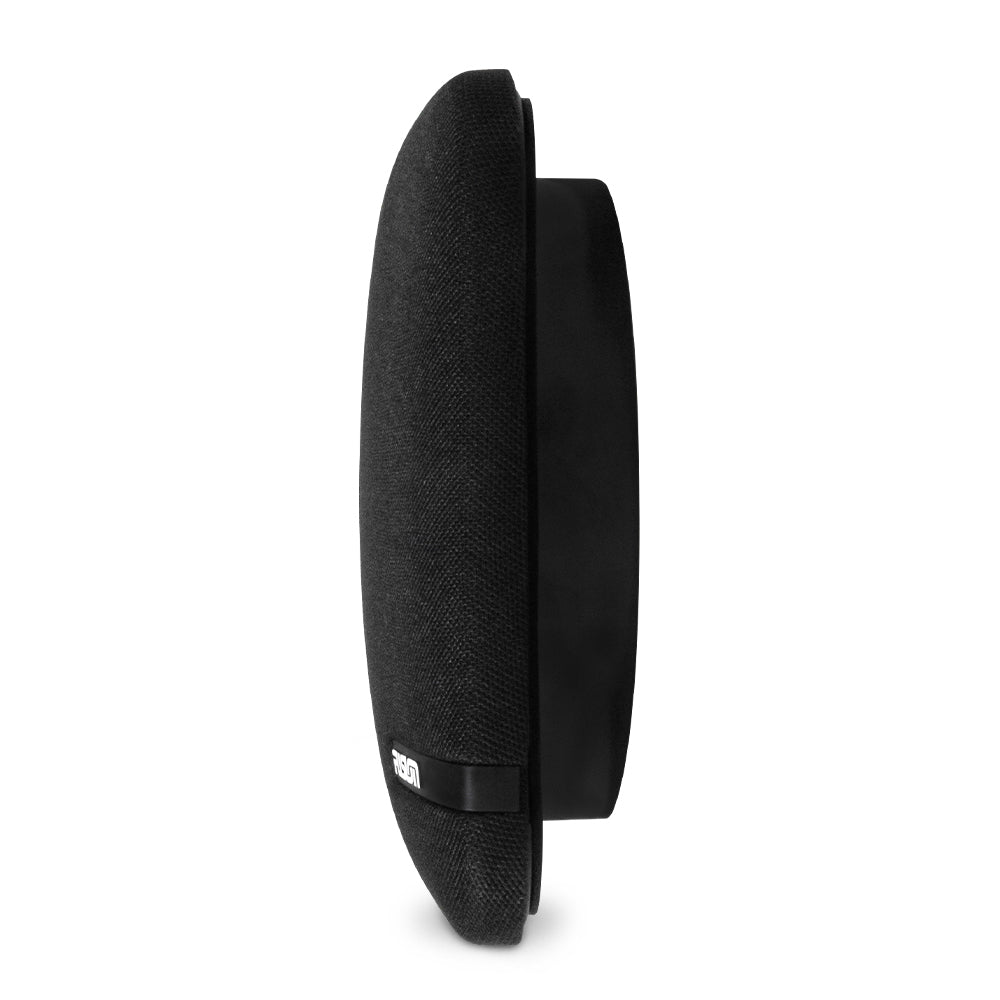

- The unique shallow mount design features a mounting depth of only 0.94″ (24 mm).
- A high-end acoustic fabric finish with rounded edges and contours adds style to your boat.
- The tuned, sealed enclosure provides quality audio reproduction and protects the speaker components.
- The mounting diameter clearance of 5.12″ (130 mm) allows it to be retrofittable with most 6.50″ speaker cutouts.
Designed and Engineered for the Marine Environment
The SM Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV.
Quality Materials and Acoustic Engineering
The SM Series speakers incorporate high-quality materials and marine-specific design elements, ensuring they look and sound great on the water.
Multiple Mounting Accessories
Three accessory mounting spacers are available (each sold separately), allowing you to mount your SM Series speakers on board with versatility and ease.
Tuned, Sealed Enclosure
The enclosure allows for installation where mounting depth is limited, without compromising sound quality. The enclosure also protects the components from damage without needing rear speaker cups, simplifying installation.
Optimised Speaker Driver
An optimised 3″ speaker driver is incorporated into the enclosure, with all acoustic parameters precisely calculated for quality audio reproduction wherever the speaker is installed.
General
| Physical dimensions (Diameter x Depth) | 6.10″ x 1.81″ (155 x 46 mm) |
|---|---|
| Water and dust rating | IP65 |
| Configuration | Full Range |
| Speaker size | 6.50″ |
| Peak power (Watts) | 100 W |
| Sensitivity (1 W / 1 m) | 84 dB |
| Frequency response | 150 Hz-20 kHz |
| Nominal impedance | 4 ohms |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 20 mm |
| Cone material | Polypropylene cone with rubber surround |
| Compass-safe distance | 96.50″ (245 cm) |
| Warranty | 3 year |
Mounting dimensions
| Mounting diameter clearance | 5.12″ (130 mm) |
|---|---|
| Mounting depth clearance | 0.94″ (24 mm) |
What's in the Box?
- One pair of speakers (based on what you select)
- 8 Phillips stainless steel mounting screws (3.50 mm x 25.40 mm (6 gauge x 1″))
- Documentation
