GLOMEX - ALTAIR AGC TELEVISION ANTENNA
Description

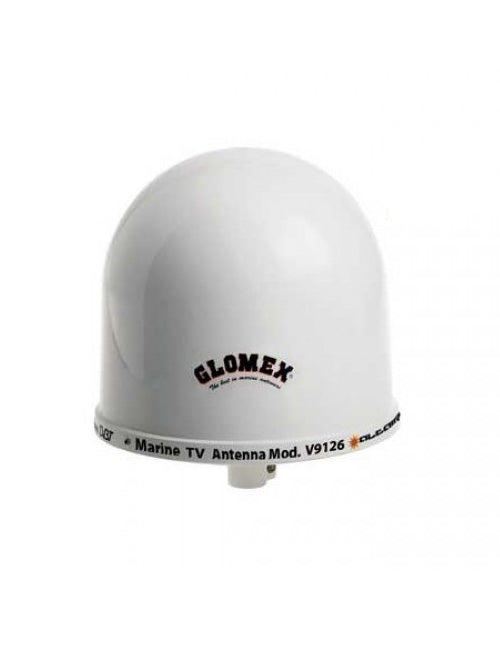

Altair AGCis the omni-directional TV antenna ensuring high performance in signal reception with both polarizations: horizontal and vertical.
In fact Altair, is different to the other omni-directional antennas, in that it has a Radome with dimensions (diameter 250 mm/10'', height 300 mm/12'') allowing the installation of the vertical reception component inside.
Altair is equipped with the automatic gain control amplifier (50023/14) In order to keep a balanced look of your boat, Altair can be matched to the VHF RA124, as they are identical in shape and size.
SUPPLIED ACCESSORIES:
- 50023/14 AMPLIFIER
- 20 M (66') COAXIAL CABLE to connect the antenna with the amplifier
- 1,5 M (5') SET CORD to connect the amplifier to the TV / Decoder
- NYLON MOUNT
TECHNICAL SPECIFICATIONS
ANTENNA DIAMETER |
250 mm (10'') |
ANTENNA HEIGHT | 300 mm (12'') |
BASE DIAMETER | 25 mm (1'') |
ANTENNA WEIGHT | 430 g (15,17 oz) |
RADOME MATERIAL | U.V. resistant ASA |
ANGLE OF RECEPTION |
360° |
POLARIZATION | Horizontal / Vertical |
IMPEDANCE | 75 ohms |
FREQUENCY RANGE | 40/890 MHz |
GAIN AVERAGE | 27,5 dB |
NOISE FACTOR | 2,1 dB |
POWER CONSUPTION | 25 mA |
POWER SUPPLY | 12/24 Vdc |
ADJUSTABLE GAIN | AUTOMATIC |
TV SET MAX | 2 |
TERMINATION | F female |
CONNECTOR SUPPLIED | F male gold plated connector (V9144) |
