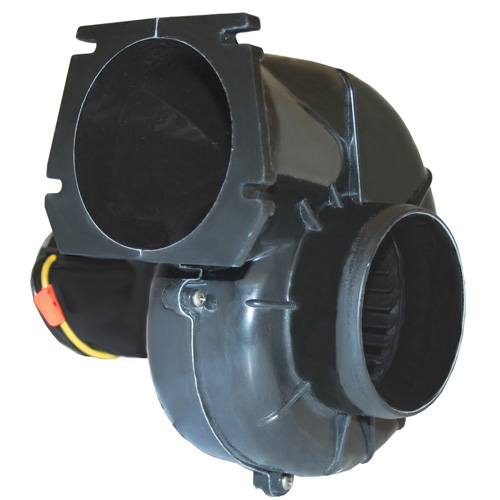

Blower - Extra Heavy Duty - Flange Mount - 100mm - 12V - 7.0 m3/minute

Continuously rated extra heavy duty motor with minimum 5,000 hour motor life. Suitable for commercial or high use engine room air intake or extraction. Ideal for continuous operation where engine rooms with generator sets require the constant venting of warm air.

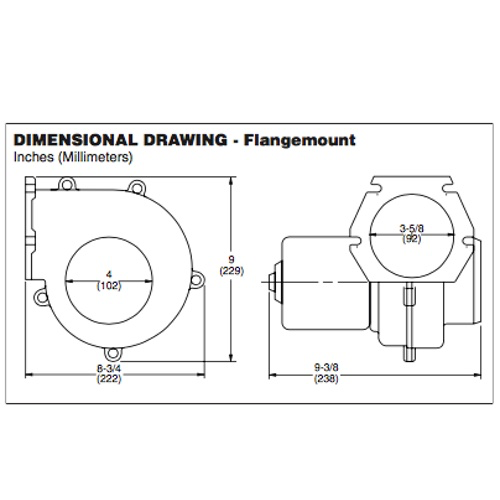

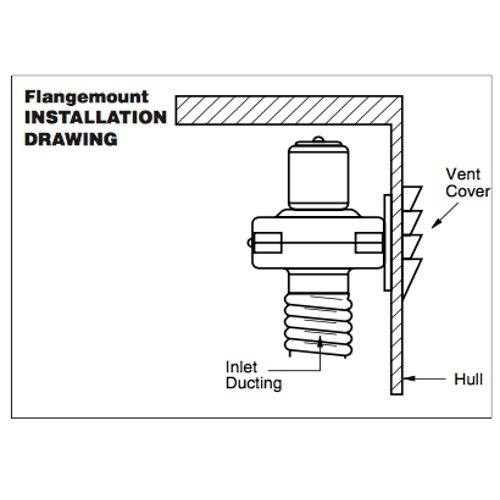

Flangemount type or flexmount in-line design where the blower can be rotated in the bracket to allow discharge in any direction.

Features:

• Extended life 5,000 hour motor
• Tough reinforced thermoset plastic housing
• Mounts to any flat surface
• Slip-On inlet ducting connection
• Efficient high volume air flow
• Low-Current draw
• Corrosion-Resistant materials throughout
• N.M.M.A. Type accepted
• Meets USCG regulation 183.410 and ISO 8846 MARINE for ignition protection
• Complies with ISO 9097 MARINE
• Conforms with BSEN 50081-2 for suppression of electro-magnetic interference

  Specifications:


• Air flow - 7,0 m3/minute (250 CFM)
• Voltage - 12Vdc
• Amps - 11
• Fuse size - 15
• Weight - 2.72 kg (6 lb)

  Wiring:

  Use stranded copper wire. For lengths up to 25 feet (7,6 m) from power source: Use 12 gauge wire for 12 volt and 14 gauge wire for 24 volt. Use larger wire for longer lengths. Use a 10 amp rated on-off switch in positive side of circuit (Model 44960-0002). Circuit must be protected with a fuse. Suggested fuse sizes are listed in the specifications.

  Operation: See following warning placard statement:

  THE "WARNING" PLACARD SUPPLIED WITH BLOWER MUST BE MOUNTED ADJACENT TO ENGINE IGNITION SWITCHES (ALL LOCATIONS) TO COMPLY WITH TITLE 33, PART 183; SUBPART L, USCG VENTILATION REGULATIONS. *

  Additional warning placards are available from factory by requesting form 43003-0418.

  Notice: Blowers should be mounted away from extreme heat (more than 54.4 Celsius) to prevent distortion of blower wheel or housing.
