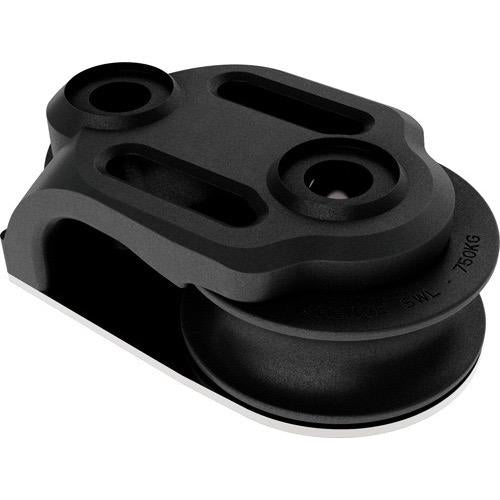

FootBlock - Control & Synchro

Designed and engineered for efficiency, superior handling and strength, each Footblock features alloy cheeks, fixing isolators and moulded base plate to prevent sealant ingress into the sheave. Each component is designed to perfectly synchronise with the movement of the rope to provide smooth and efficient transfer of power with reduced rope wear and minimal friction
For temporary load holding or tidying of sheets, use jamming footblocks

Features:

• Twin fixing point with inserts
• 40, 60, 72 and 90mm sheave diameters
• Moulded base plate helps capture sealant to reduce water ingress
• Standard and jammer options can be double stacked

  Other Details:

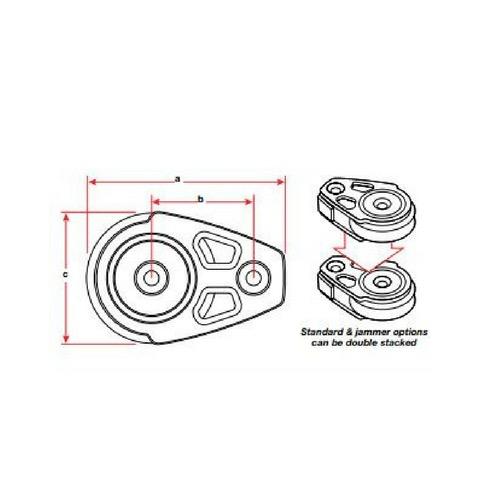

  BLA Code	Description	Sheave Dia. mm	Max Rope Size mm	Working Load Limit kg	Breaking Load kg	A Block Length mm	B Mount Holes mm	C Block Width mm
  420572	Single Footblock	40	10	750	1500	63.2	34.5	40
  420551	Double Footblock	40	10	750	1500	63.2	34.5	40
  420420	Single Footblock	60	10	800	1600	98	51	59
  420422	Single Footblock + Jammer	60	10	800	1600	98	51	59
  420424	Single Footblock	72	12	1100	2200	110.6	58	71
  420426	Single Footblock + Jammer	72	12	1100	2200	110.6	58	71
  420428	Single Footblock	90	14	2000	4000	134	69	89
  420430	Single Footblock + Jammer	90	14	2000	4000	134	69	89
