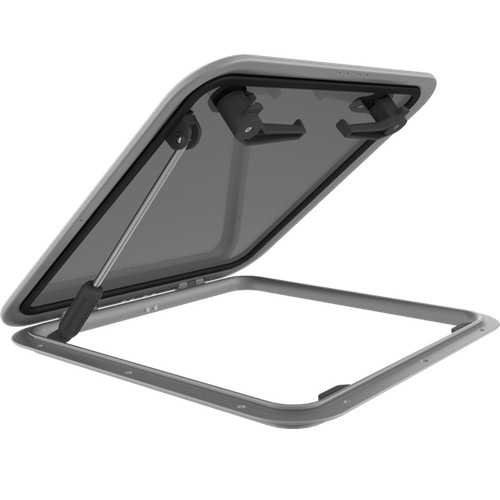

Hatch - Low Profile With Stay

The Low Profile hatch range features a snag free soft styling which presents a sleek modern look. The range is ideal for use on a wide range of power craft and yachts. The smaller ventilation hatches are ideally suited to any deck location over toilets or galleys. The larger Low Profile hatch range can be used as a foredeck hatch on small to mid size power and sailboats. The hatch also features Lewmar's unique sealing system allowing easy acrylic replacement.

Features:

• Size 30 and above feature outside handles
• Ability to quickly and easily replace acrylic lenses
• Ability to lock the hatch fully closed or in the vented position
• Friction hinges hold the lid open in any position up to 95 degrees
• Anodised aluminium frame for corrosion resistance
• Curved upper frame for strength as well as modern styling
• CE Approved for Area 2A
• Available in round and D-Hatch configuration

  Other Details:

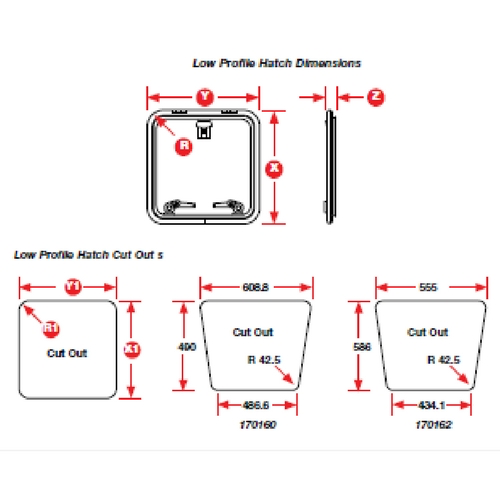

  BLA Code with Stay	Size	Outside X x Y L x W mm	Cut Out X1 x Y1 L x W mm	Radii R mm	Radii R1 mm	Height Z mm	Acrylic mm	Internal Trim Kit & Insect Screen	Internal Trim Kit Colour	Insect Screen Only to Suit
  170056	10	330 x 330	260 x 260	72.5	42.5	25	8	170204	White	170242
  170062	30	397 x 527	327 x 457	72.5	42.5	25	8	170214	White	170250
  170066	40	491 x 491	421 x 421	72.5	42.5	25	8	170216	White	170252
  170072	44	512 x 512	442 x 442	72.5	42.5	25	8	170220	White	170256
  170076	50	447 x 577	377 x 507	72.5	42.5	25	8	170222	White	170258
  170080	54	462 x 577	392 x 507	72.5	42.5	25	10	170226	White	170262
  170084	60	577 x 577	507 x 507	72.5	42.5	25	10	170228	White	170264
