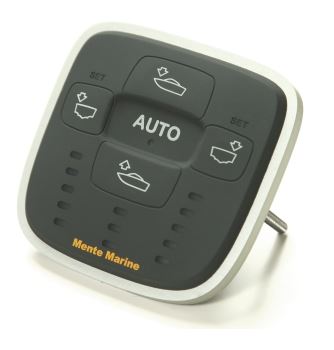

Mente Marine Duel Helm 520/FCP fly bridge control panel, with 18m harness

The Mente Marine switches offer manual trim tab control, automatic trim tab control, indicator lights showing the position of the trim tabs and auto tab retract.

FCP Model is for All Boats

• Choose the FCP if it is easier to connect to the trim tabs in the engine room

• Planning and semi displacement hulls

• Shaftdrives, sterndrives, IPS and outboards

• Optional flybridge control panel available

• Typical boat length: 25 to 50 feet

Controls Roll and Pitch

Mente Marine will work with all conventional trim tab systems. It does not work with interceptor style trim systems like ZipWake.

It works with both hydraulic trim tabs (Bennett, Insta Trim) and electric trim tab kits (Bennett, Lenco, Lectrotab).

It is very simple to install, the FCP consists of the keypad on the dashboard only, no other relay modules, harnesses etc.

It has an intuitive interface and is easy to calibrate. The amount of auto tab control response can be fine tuned as well.

Bennett controls with indicator lights require senders fitted inside the rams (Boat lifted out of the water to fit them). Mente does not require senders for the indicator lights to function. Mente can be retrofitted with the boat in the water.

You can download the FCP Installation guide here.
