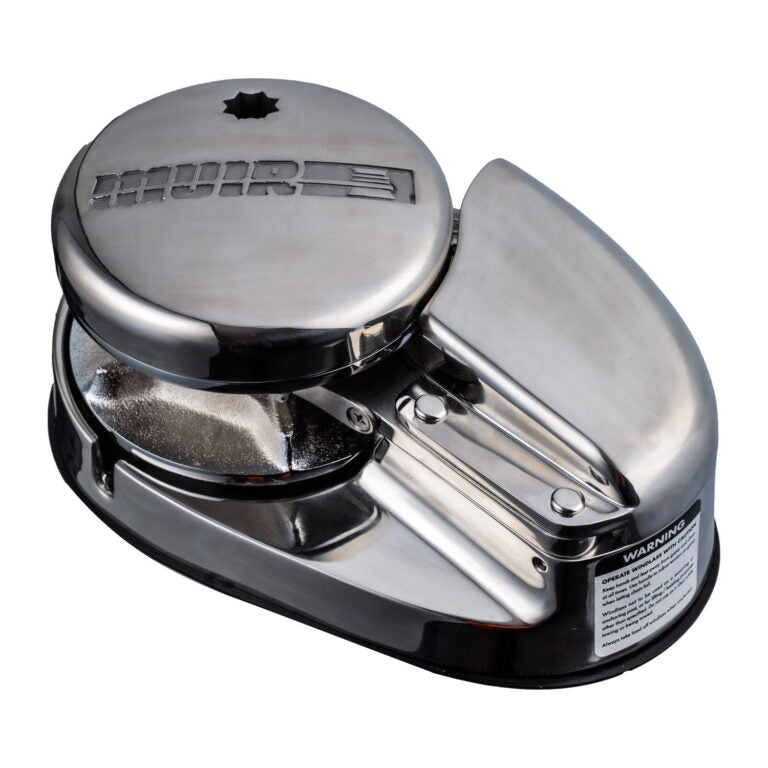

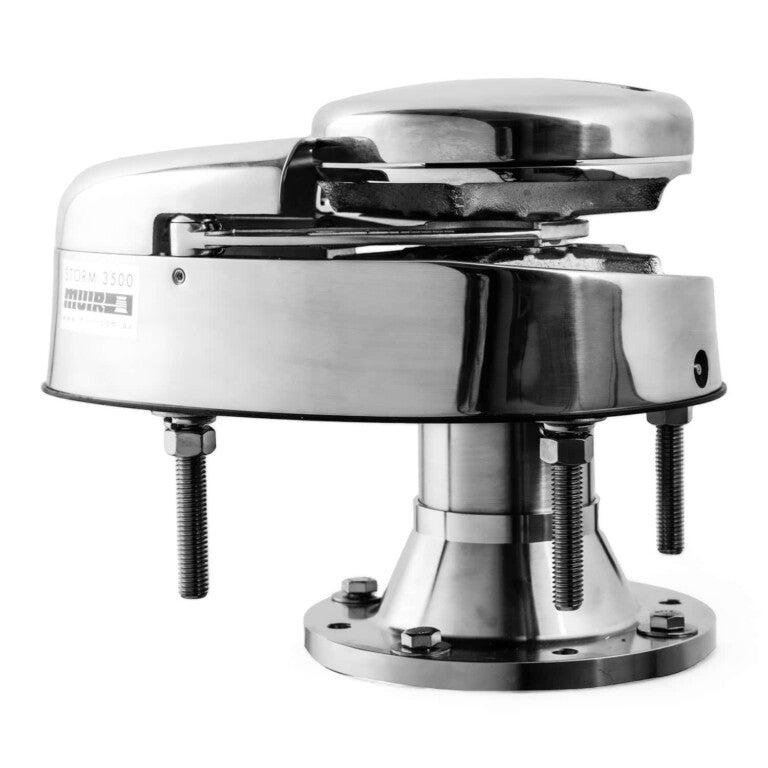

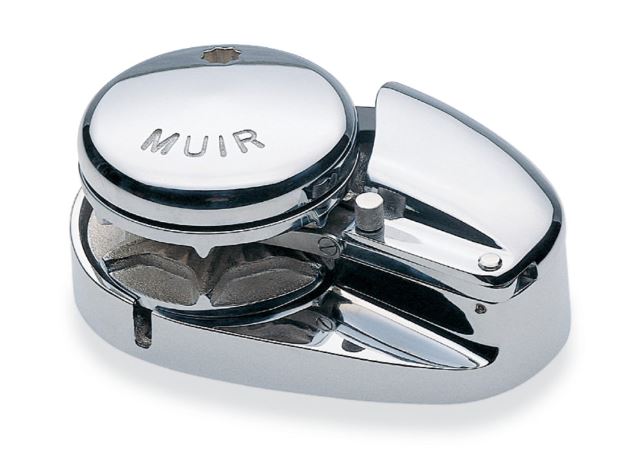

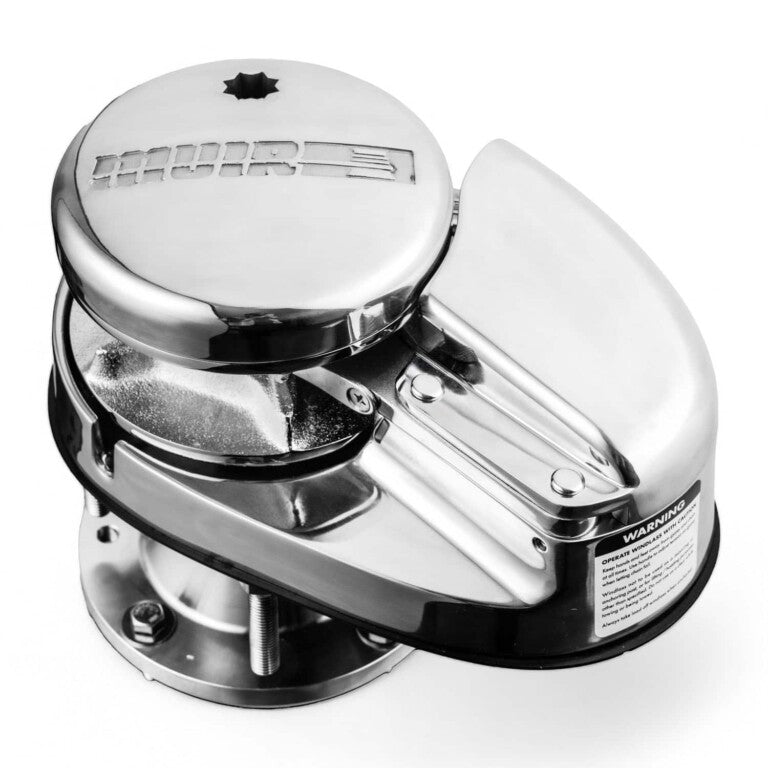

MUIR STORM VR4000 24V Only Winch
Description

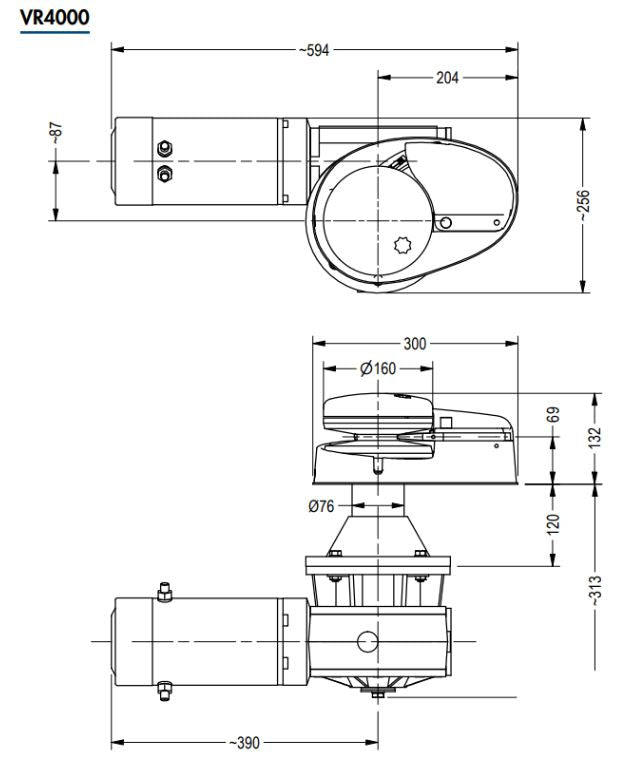

| Model | VR/VRC4000 |
|---|---|
| Vessel Length | 18-25m (58-82ft) |
| Power Supply (DC) | 24V, AC Electric available |
| Motor (Watts) | 2000 |
| Hydraulic Pressure | 200 bar (2900PSI) |
| Hydraulic Flow | 22L/min (5.8gal/min) |
| Max Load | 1818kg (4000lb) |
| Work Load | 450kg (992lb) |
| Amps Work Load | 110 |
| Max Line Speed | 20m/min (64ft/min) |
| Chain Size | 10mm (3/8"), 13mm (1/2"), 8mm (5/16") |
| Rope Size | 14-16mm (9/16-5/8") |
| Net Weight | DC VR 54kg (119lb) VRC 58kg (119lb), HYD VR 50kg (110lb) VRC 55kg (121lb) |
| Manual Operation | MORS (opt) |
Features
- Rope chain combination gypsy
- Quick release integrated swivel chain pipe cover
- Gypsy with capstan (VRC) or gypsy with low profile clutch top arrangement (VR)

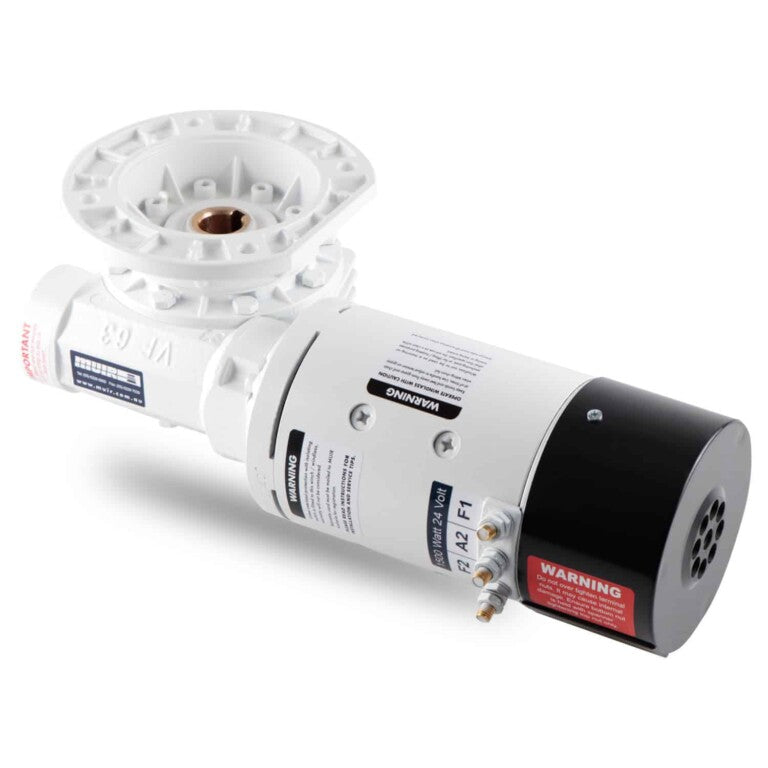

- Heavy duty marine grade, dual direction motor in 12 & 24V DC, AC & Hydraulic
- Polished Stainless steel components
- Independent gypsy and tall capstan operation
- Capstan model features heavy duty fluted finish for increased grip
- Self aligning gearbox/adaptor
- Stainless steel shaft
- Cone clutch/brake
- Stainless steel mounting studs
- Shaft seal
- Lubricating grease nipple
- Clutch release handle
- Rope Chain Management System (RCMS)

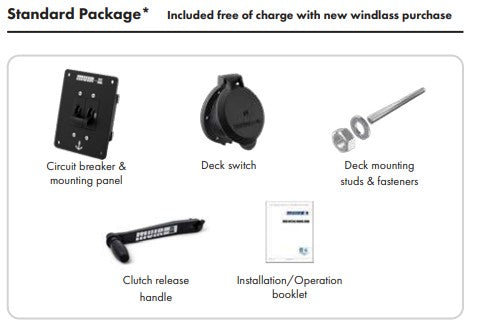

- Installation/Operation booklet
Options
- Manual Override System (MORS)
- Round base VR/VRC model (chain only)
- AC electric motor available
- Mirror image models available
- Traditional polished bronze finish
- Extra deck clearance kit for any deck thickness
- Full range of accessories including chain, rope, chain stoppers, snubber kits & devil claws
- Electric & hydraulic operating options & accessories
- Auto anchor -chain counter.
