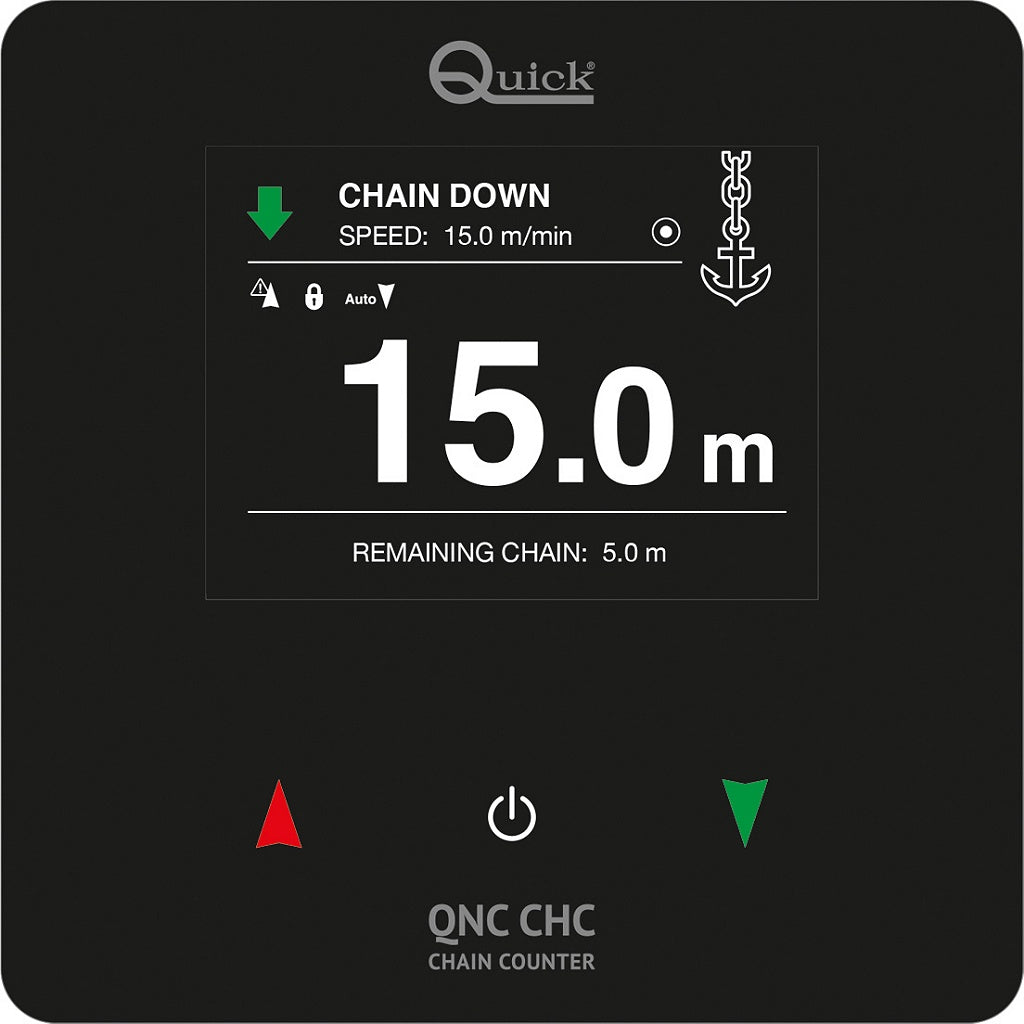

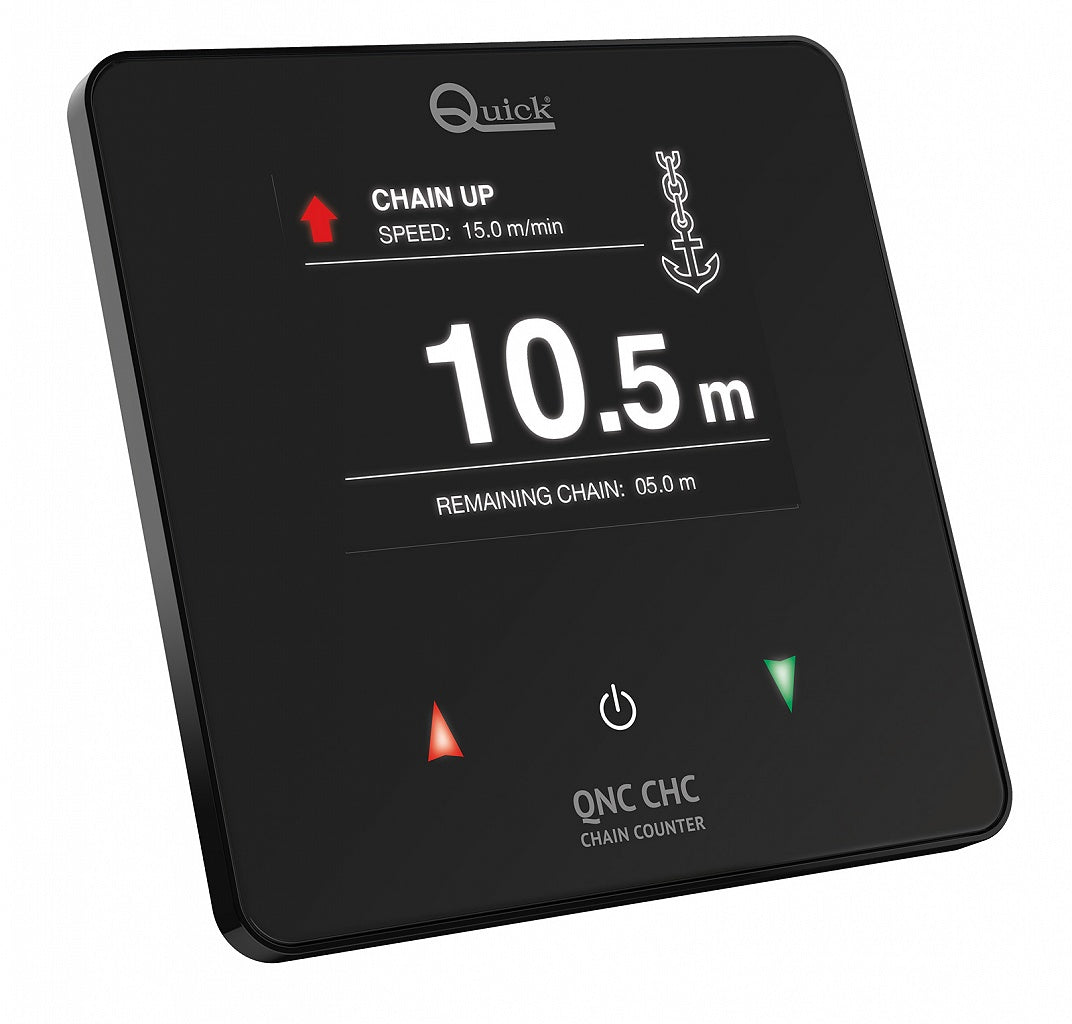

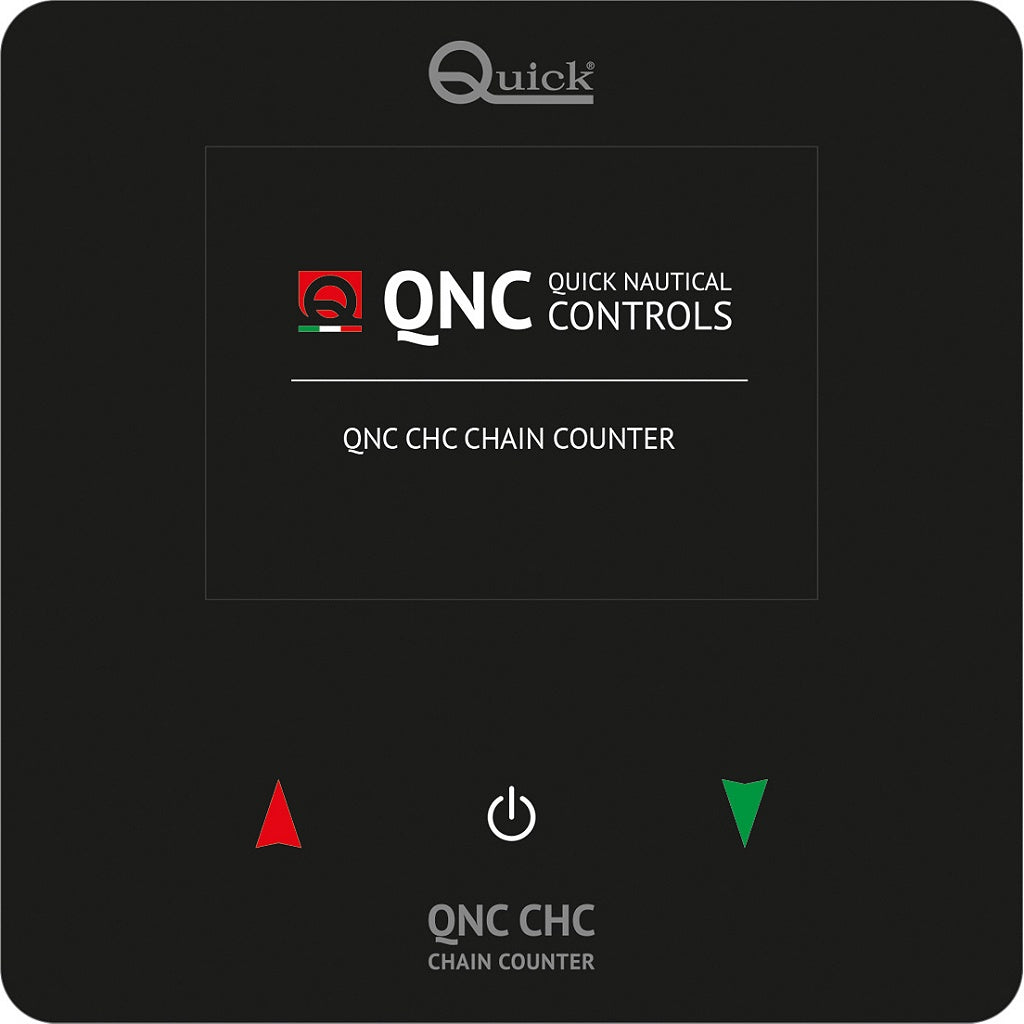

QUICK QNC CNC Anchor Windlass Control Panel and Chain Counter FNQNCCHCF000A00

QNC CHC is a complete and reliable tool to remotely operate the windlass and check the length of the lowered chain by means of the colour graphic display.
The panel surface is completely black tempered glass.

General characteristics

• Automatic descent function
• Up alarm function
• Anchor weighing function in case of sensor failure.
• Windlass management with auto free fall.
• Display of the lowered chain length, in metres, feet and fathom.
• Glass front
• Extremely thin profile
• Capacitive keys
• High brightness 3.5” colour graphic display

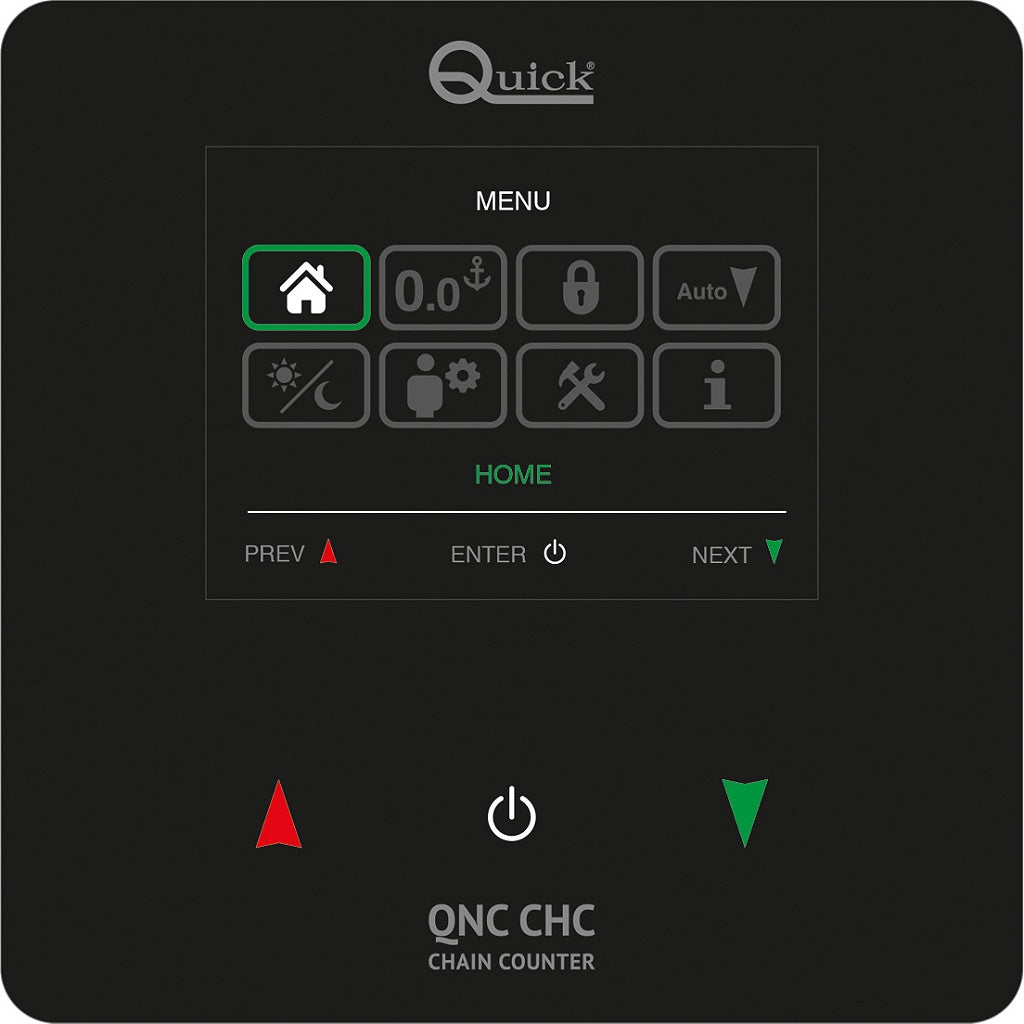

• Multilingual user interface
• Power supply 12/24 Vdc
• Functioning over a wide range of environmental temperatures
• Protection rating IP67
• CAN bus Communication Interface
• Supply voltage 9 ÷ 32 Vdc
• Maximum current absorption (2) 32 mA @ 12 V - 17 mA @ 24 V
• Operating temperature -20°C ÷ +70 °C (-4°F ÷ +158°F)
• Protection rating IP67
• Weight 250 g (0,44 lb)
