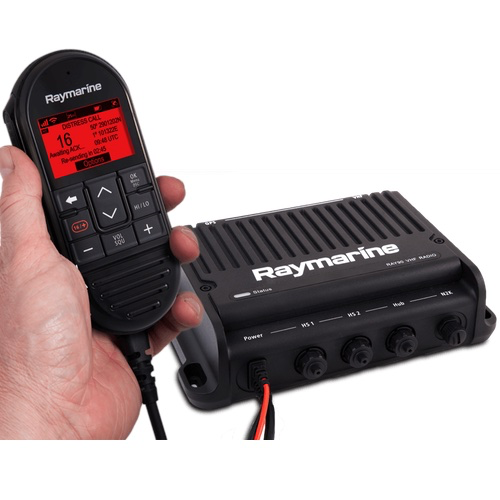

Ray90 Modular Dual-Station VHF Radio System (incl. wired handset, passive speaker & cable)
Description
Key Features
Ray90 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel’s MMSI number during setup and you’re ready to go. For GPS operation the optional GA150 passive GPS antenna is required.
Position Tracking
Use Ray90’s position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray90 supports the ATIS system on navigable inland waterways.
Loudhailer
Ray90’s built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can also be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.
Waterproof & Ruggedized
Ray90’s transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.
Expand Your System
The Ray90 system includes 1 RayMic wired handset and a passive speaker kit. Expand your system with an additional RayMic handset and remote speaker. For noisy environments choose the optional active remote speaker. No matter how small or how large your vessel is, the Ray90 all the power and performance you need for essential communications on the water.
General Specifications:
Height: 63mm
Width: 235mm
Depth: 160mm
Weight Main Unit: 2.6kg
Water Integrity: Complies with IPX6 & IPX7 Complies with EN60945
Operating Temperature Range: -25°C to 55°C
Storage Temperature Range: -25°C to 70°C
Humidty: up to 95%
Communications Port: NMEA 0183 (version 4.01); NMEA2000 (version 3.101)
Nominal Supply Voltage: 12V DC. Reverse polarity and over voltage protected
Operating Voltage Range: 9V DC to 16V DC
Current Consumption: Less than 6A at High Power (13.6V), Standby: 600 mA, Receive: 2 Amps
Channels: All available US, International and Canadian VHF marine bands
Frequency Range: 156.000 – 157.425 MHz, 155.500 to 161.425 MHz Private channels
Frequency Stability: + / - 1.5 ppm
Channel Spacing: 12.5 kHz
Power Output: High Power: 25 Watt, Low Power: 1 Watt
Spurious Emission: Better than -36 dBm at 25W (Less than 0.25 µW)
Maximum Deviation: +/- 5kHz
Antenna Port Impedance: 50 ohms typical
Receiver Type: Double Conversion Super Heterodyne
Channels: All available US, International and Canadian VHF marine bands
Sensitivity: Better than 1 microvolt EMF @ 20dB SINAD
Squelch Sensitivity: Less than -2 dBµ EMF
Hum & Noise: Better than -40 dB
Audio Distortion: Less than 10%
Receiver Sensitivity: Distance -119 dBm (0.25uV)@12 dB SINAD ← Typical, Local -110 dBm (0.7uV)@12 dB SINAD ← Typical
