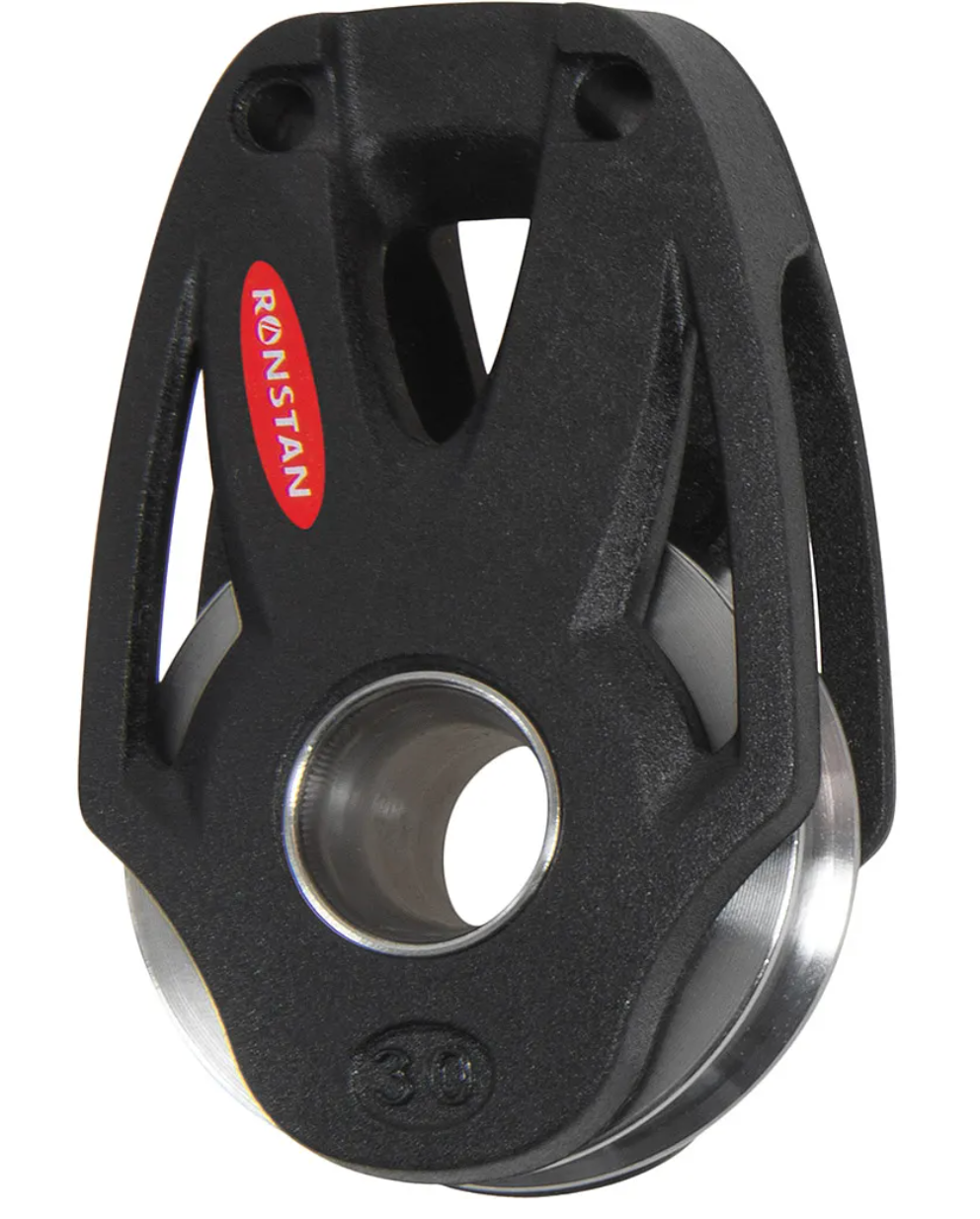

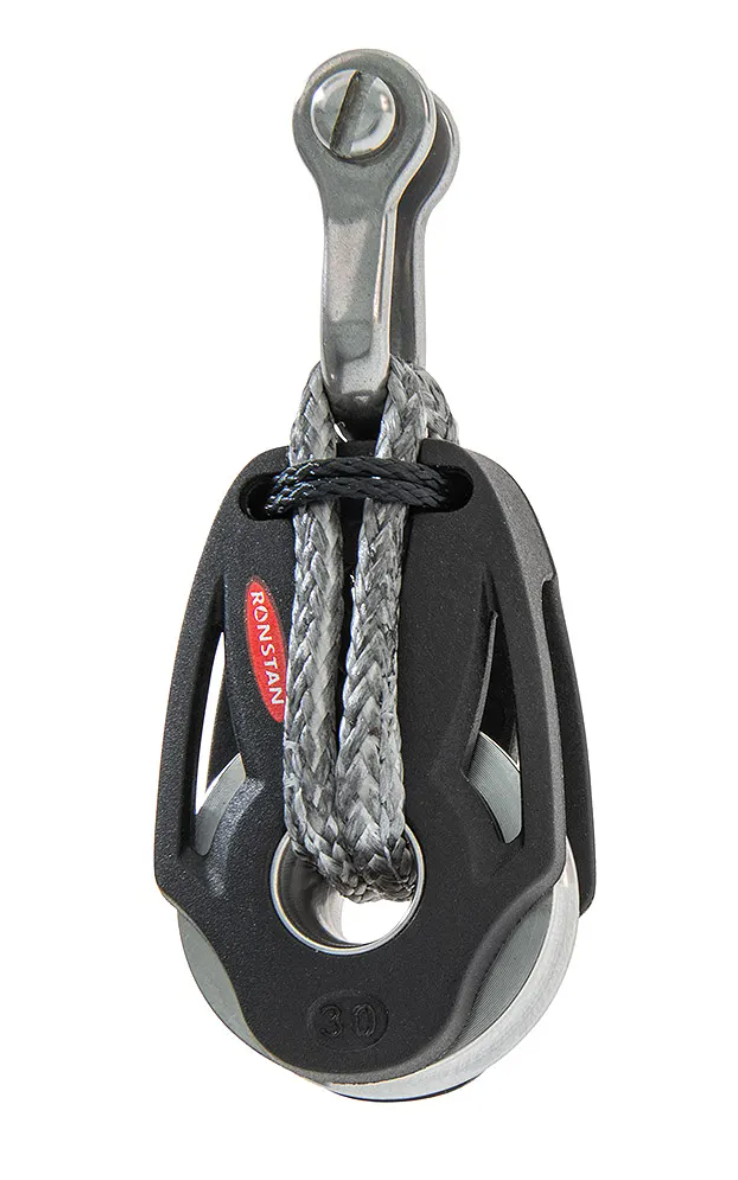

Ronstan Series 30 High Load Lashing Orbit Block™ RF35109HL
Description
Single sheave high load block with becket option and lashing head
FEATURES
Ultra-strong HHL sheave and bearing race: Grade 2205 stainless steel, Balls: Grade 316.
RF35109HL features class leading dynamic and static load ratings for a 30mm block.
Frame/cheeks: Glass fibre reinforced nylon.
Low profile and compact, through sheave becket.
APPLICATIONS
Ideal for high load applications such as. halyards, cascading vangs, backstays,. outhauls and cunningham systems.
MATERIALS
- HHL sheave and bearing race: Grade 2205 stainless steel.
- Balls: Grade 316 stainless steel.
- Frame/cheeks: Glass fibre reinforced nylon.
- Rope link: UV stabilised, multi-strand SK75 Dyneema®.
SPECIFICATIONS
| B.L. (kg) | 1650 |
|---|---|
| M.W.L. (kg) | 550 |
| Max. Rope diameter (mm) | 8 |
| Weight (g) | 42 |
| Notes: | Both the MWL and BL are dependent on the strength of the line used to lash the block through the central hub. Please note DSH-4GRY Soft Shackle has a BL of 500kg, which is lower than the RF35109HL. |
