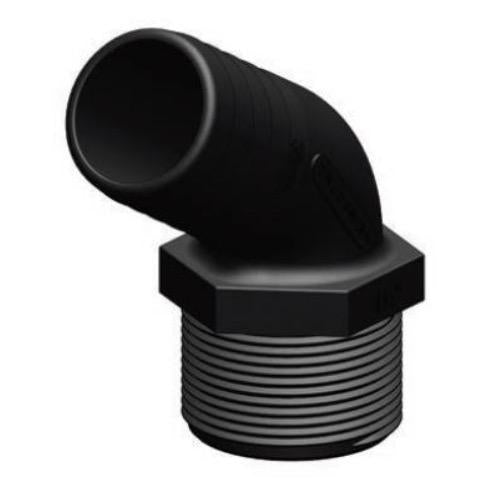

TRUDESIGN Tail - Long Thread 120 Degree - 30mm Thread Length

SKU: 138695

$10.90 $13.90

Color

NA

Size

32mm 1 1/4" BSP - In Dia: 24mm - 65g/2.29oz 38mm 1 1/4" BSP - In Dia: 30mm - 75g/2.65oz 50mm 2" BSP - In Dia: 42mm - 130g/4.59oz 25mm 1" BSP - In Dia: 19mm - 45g/1.59oz 38mm 1 1/2" BSP - In Dia: 30mm - 80g/2.82oz

Pickup available at Southport Yacht Club, Macarthur Parade

Usually ready in 2-4 days

View store information

Description

Designed and made in New Zealand, TruDesign® Tail Long Thread 120° fittings are the superior composite connection for fitting hose to threaded fittings. TruDesign® Tail Long Thread 120°s are moulded from a glass-reinforced nylon composite. High strength, high-modulus glass fibres within the material provide dramatic strength, stiffness, toughness, and dimensional stability. TruDesign® fittings eliminate the corrosion and electrical bonding problems associated with metallic fittings. Tail fittings are designed for twin hose clamps, and to never crush.

Features:

Manufactured from a glass-reinforced nylon composite - High strength and light weight

Immune to corrosion and electrolysis Long life with no concerns over decreased performance due to corrosion. No bonding required

Chemical resistant Impervious to diesel, petrol and antifouling paints

UV resistant Will not degrade or discolour with ultraviolet light from the sun

High quality surface finish Will not discolour with green film as similar bronze fittings do

BSP Parallel (Parallel) threads Universal compatibility to TruDesign® Ball Valves, threaded fittings, and other marine components

Large operating temperature range Suitable for all marine environments, from -20°C to +100°C

Specifications:

Threads on the Tail Long Thread 120°s are BSP Parallel (British Standard Pipe Parallel). TruDesign® parallel threads are designed so that sealant or PTFE thread tape is applied, and then the fitting screwed into place. A main advantage of parallel threads versus tapered threads is that there is far greater engagement between two mating parallel threads which in turn provides maximum strength and watertight sealing ability. Since sealing is achieved through use of a sealant or thread tape, fittings can be positioned anywhere around 360°, unlike tapered fittings that need to be fully tightened in order to seal.

Do not use with tapered thread valves or fittings - Mixing parallel and tapered threads can cause strength and sealing problems as the thread engagement is often only a few turns. Tapered threads should never be used in marine applications.
