TRUDESIGN Vented Loop

SKU: 139069BLK

$45.90 $58.90

Color

Black White

Size

38mm 19mm 25mm

Pickup available at Southport Yacht Club, Macarthur Parade

Usually ready in 2-4 days

View store information

Description

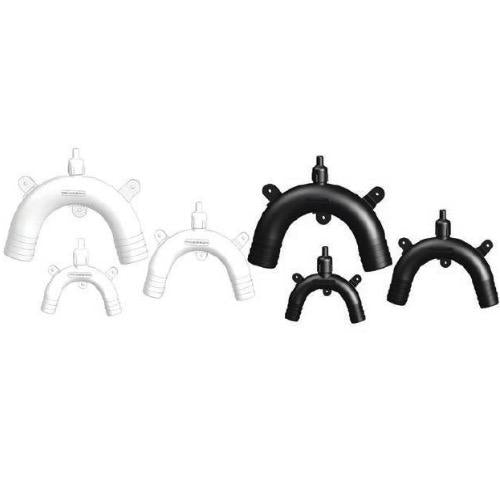

Designed and made in New Zealand, TruDesign Vented Loops are the superior composite siphon break solutions for marine applications. Vented Loops prevent water siphoning from underwater skin fittings back into a vessel and thereby guard against accidental flooding and sinking. Vented loops are used predominantly in toilet to overboard applications, toilet inlet applications and holding tank to overboard applications. They can also be used in genset or small engine inlet cooling water systems. The simple one way breather valve at the top of the vented loop allows air to enter the line when not in use, thereby preventing siphoning - and yet seals when water or waste passes through the loop. The duckbill one way valve is designed to seal even when particles are present in the fluid. Vented Loops are moulded from a high-strength, highly inert Polysulfone core overmoulded in Polyproplene.

Features:

Silicone duck bill valve - Long life with no perishing or hardening

Constant internal diameter - No reduction in flow

Self-contained mounting - 3 screw mounting posts give secure and easy installation

Chemical resistant - Impervious to waste water and common toilet cleaning products

UV resistant - These fittings will not break down with ultraviolet light or discolour from the sun

High quality surface finish - Will not discolour with green film as similar bronze fittings do

Large operating temperature range - Suitable for all marine environments, from -20∞C to +100∞C

Specifications:
It is recommended that the electronic Vented Loop with Solenoid (on following page) be used on the intakes of electric pump toilets and that the two are wired together so that the Solenoid closes upon pump activation preventing the draw-in of air. When the pump deactivates, the solenoid opens and breaks any siphon.
