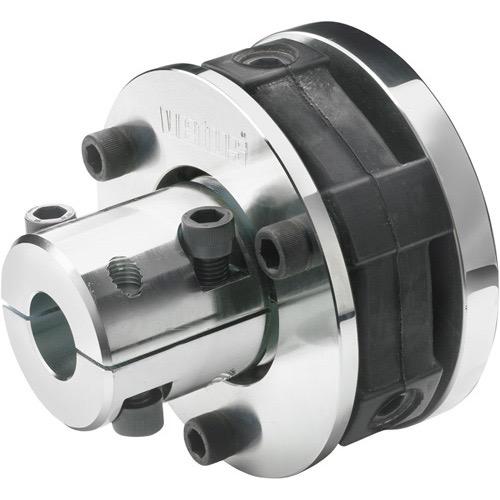

Flexible Coupling Type Bullflex 4

SKU: BULFL0425

$905.69 $973.95

Color

NA

Size

(d)Shaft Dia: 25mm (d)Shaft Dia: 30mm

Description

Ensuring optimum damping of vibrations
Type Bullflex is the answer to the increasing demand of greater boating comfort. It is especially designed to ensure optimum damping of vibrations. Torsional vibrations are smoothed out extremely efficiently by its very flexible rubber element, ensuring low-noise and vibration-free transmission without backlash between the engine and propeller shaft. Another strong characteristic is the excellent alignment of the propeller shaft.

Features

Very high flexibility

Secured against shearing off (axially and radially) ensuring safe transmission under all circumstances

Misalignment of up to 2º permissible

Excellent centring of the shaft, allowing high shaft revolutions

Shaft remains centred even in reverse gear

Possibility to remove the centring ring, in case two or more bearings are applied

Built-in thrust damper reducing axial vibrations

Non-tapered clamping hub for perfect centring and easy dismantling of the shaft assembly

Specifications

Models 1, 2 and 4 have a 4" gearbox connection

VETUS can also supply the required fastenings for installation of the Bullflex onto the gearbox. This coupling is not suitable for V-Drives

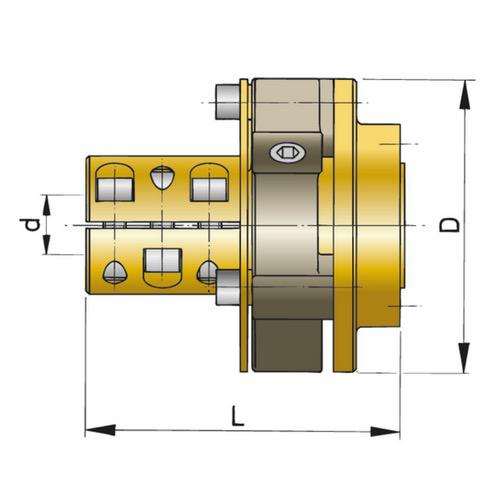

Type	DIN 6270 B = pleasure craft kW (HP)/ 100 shaft RPM	DIN 6270 A = commercial craft kW (HP)/ 100 shaft RPM	maximummaximum torque Nm		max. r.p.m. at zero misalignment	max. r.p.m. at 2º misalignment	D mm	L mm	d mm
			DIN	DIN
			6270B	6270A
BULFL0425	3.1 (4.3)	2.1 (2.8)	300	200	6000	3000	150	152	25
BULFL0430	3.1 (4.3)	2.1 (2.8)	300	200	6000	3000	150	152	30
