Flexible Coupling Type COMBIFLEX - 3.5kg

SKU: COMFL1230
$465.00 $510.02

Color
Size
Description
Optimum damping of torsional vibrations

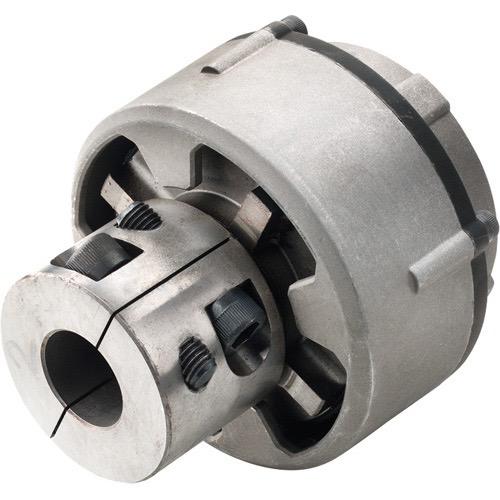

The Combiflex coupling has been designed to ensure optimum damping of torsional vibrations, created by cycle irregularities especially at low engine revolutions. The Combiflex coupling is secured against shearing off, both axially and radially, thus ensuring safe transmission under all circumstances. The Combiflex coupling also provides excellent alignment of the propeller shaft. Aligning the engine and propeller shaft can be a rather time consuming affair, however the Combiflex will remain perfectly centred onto the gearbox flange, even if the shaft has a misalignment of 2º. The parallel clamping hub ensures easy installation and probably even more importantly, easy dismantling of the shaft assembly.
Available for shafts of Ø 25 or 30 mm. Comes with a 4” flange to fit most common gearbox models.

Specifications

TYPE

COMFL1225 COMFL1230
DIN 6270 B = pleasure craft.
kW/100 r.p.m. on shaft (HP)
2,4 (3,2) 2,4 (3,2)
Example: at 1500 r.p.m. the max.
admissible power is (DIN B)
15 x 2,4 = 36 kW (48 hp) 15 x 2,4 = 36 kW (48 hp)
DIN 6270 A = commercial craft.
kW/100 r.p.m. on shaft (HP)
1,7 (2,2) 1,7 (2,2)

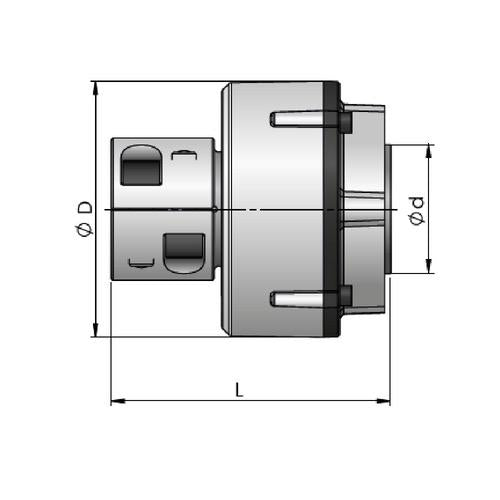

D mm 126 126
L mm 137 137
Ø d 25 30
Weight in kg 3,5 3,2
