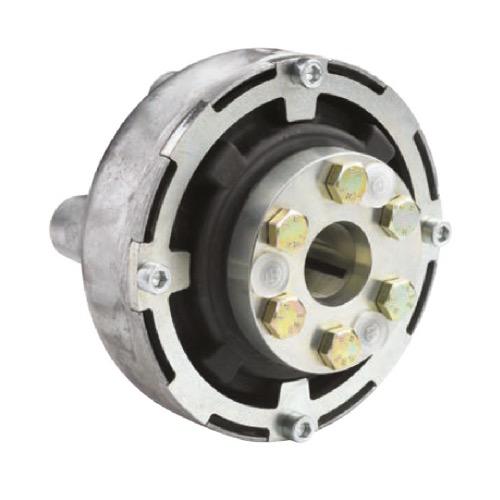

Flexible Coupling Type Uniflex

SKU: UNIFL1330

$839.90 $916.58

Color

NA

Size

(d)Shaft Dia: 30mm - 2.4kg (d)Shaft Dia: 35mm - 6.9kg (d)Shaft Dia: 20mm - 2.4kg (d)Shaft Dia: 40mm - 6.9kg (d)Shaft Dia: 30mm - 6.9kg (d)Shaft Dia: 25mm - 2.4kg

Description

Exact alignment and concentric installation of propeller shaft
Couplings of type Uniflex permit a misalignment of 2º. They will centre the shaft on the gearbox by means of a conical clamping hub and is an ideal flexible coupling between a propeller shaft with a self-aligning bearing and an engine on flexible supports. These couplings are axially and radially secured against shearing off. When the propeller shaft is connected to the engine at an angle of 2º, the maximum admissible number of revolutions is 1.500 r.p.m. on the shaft.

Specifications Uniflex type 13 and 16

With cylindrical bore

Clamping hub for shafts with a diameter of 20, 25 and 30 (type 13), and 30, 35 or 40 mm for type 16

4" Connection (type 13) and/or 5" (type 16) for Hurth, Velvet, TD, ZF, PRM and other makes

Not suitable for V-Drives

Type	DIN 6270 B = pleasure craft. kW/100 r.p.m. on shaft (HP)	Example: at 1500 r.p.m. the max. admissible power is (DIN B)	DIN 6270 A = commercial craft. kW/100 r.p.m. on shaft (HP)	D mm	L mm	Ø d	Weight in kg
UNIFL1320	2,6 (3,6)	15 x 2,6 = 39 kW (53 hp)	1,8 (2,5)	130	98	20	2,4
UNIFL1325	2,6 (3,6)	15 x 2,6 = 39 kW (53 hp)	1,8 (2,5)	130	98	25	2,4
UNIFL1330	2,6 (3,6)	15 x 2,6 = 39 kW (53 hp)	1,8 (2,5)	130	98	30	2,4
UNIFL1630	5,2 (7,1)	15 x 5,2 = 79 kW (107 hp)	3,6 (5)	199	131	30	6,9
UNIFL1635	5,2 (7,1)	15 x 5,2 = 79 kW (107 hp)	3,6 (5)	199	131	35	6,9
UNIFL1640	5,2 (7,1)	15 x 5,2 = 79 kW (107 hp)	3,6 (5)	199	131	40	6,9
