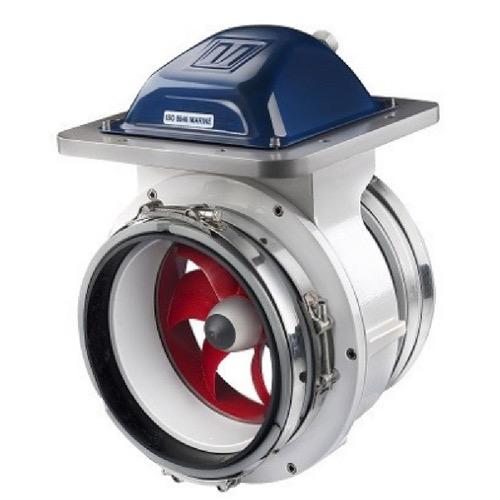

Rimdrive Thruster

Peaceful power at your fingertips
The RIMDRIVE is unique in its design; when operating, this thruster is extremely quiet! The propeller forms the rotating part of the electric motor (rotor) and the fixed winding (stator) is mounted in the tunnel. Therefore gears are not used in this design. Secondly a ring mounted around the propeller, prevents the propeller from cavitating.

The RIMDRIVE is available in 125 and 160 kgf and needs a thruster supply voltage of 48 VOLT DC. Charging can either be delivered by a charger 110/230VAC to 48VDC charger or by converting the normal 12 or 24V battery supply voltage by means of a DC to DC converter solution. The panel (BPJP) and interface (RDIF) needs to be ordered separately.

Unique features

• No carbon brushes
• Quiet operation due to a virtually cavitation free propeller and no use of gears
• Proportional control as standard
• Virtually unlimited runtime
• Easy to install
• Maintenance free
• IP67 top cover / ISO 8846 ignition protection compliant
• Lock the thruster at any speed and hold the boat alongside the dock
• Can be used as a stern thruster
• Suitable for aluminum, steel and GRP boats



  Specifications	RD125	RD160
  Thrust, N (kgf) (effective power output)	125 kgf	160 kgf
  Power kW (hp)	6.7 (9.1)	9.5 (12.9)
  Permanent Magnet Synchronous motor	✔	✔
  Variable speed	✔	✔
  Tunnel diameter, internal, mm	250 mm	250 mm
  Weight excluding tunnel, in kg	37	37
  Supply voltage: 12/24 Volt. Thruster Voltage: 48 Volt DC	✔	✔
  Motor current consumption @48VDC (A) +/-10%	150	200
  Main fuse, “slow blow” (A)	200	250
  Batteries, 48 Volt, min Ah (depending on desired runtime)	4x 60 Ah	4x 105 Ah
  Battery cables**, total length of positive and negative cables together, m/mm2	0-10 m/25 mm2 10 m plus 35 mm2	0-10 m/35 mm2 10 m plus 50 mm2
  Battery main switch, model BATSW	250A	250A
  ** Based on VETUS battery cables

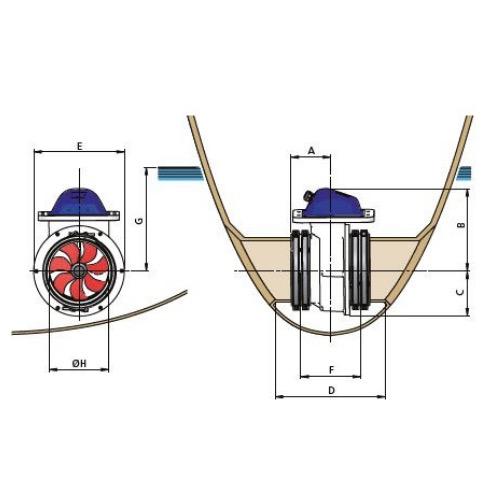

  Dimensions in mm
  A	170	170
  B	341	341
  C	190	190
  D min/max.	400/1000	400/1000
  E	380	380
  F	247	247
  G min.	250	250
  H	250	250
