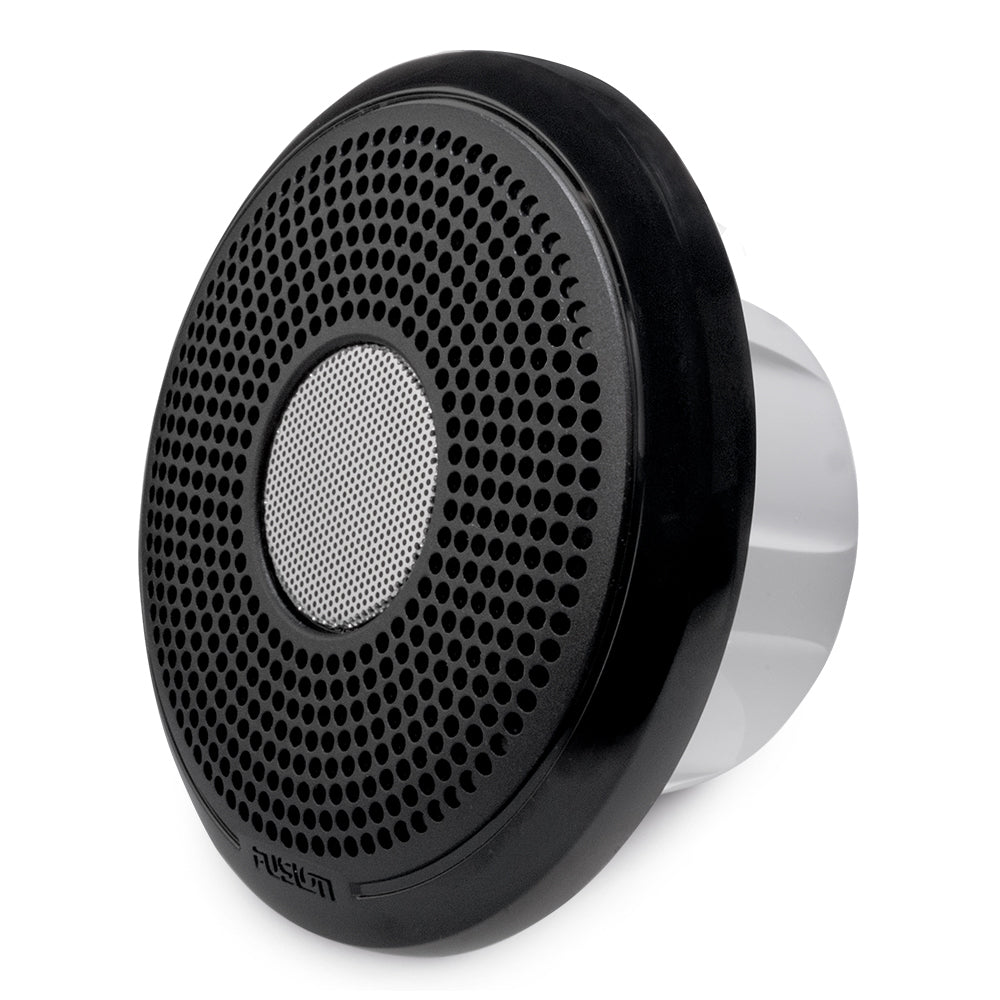

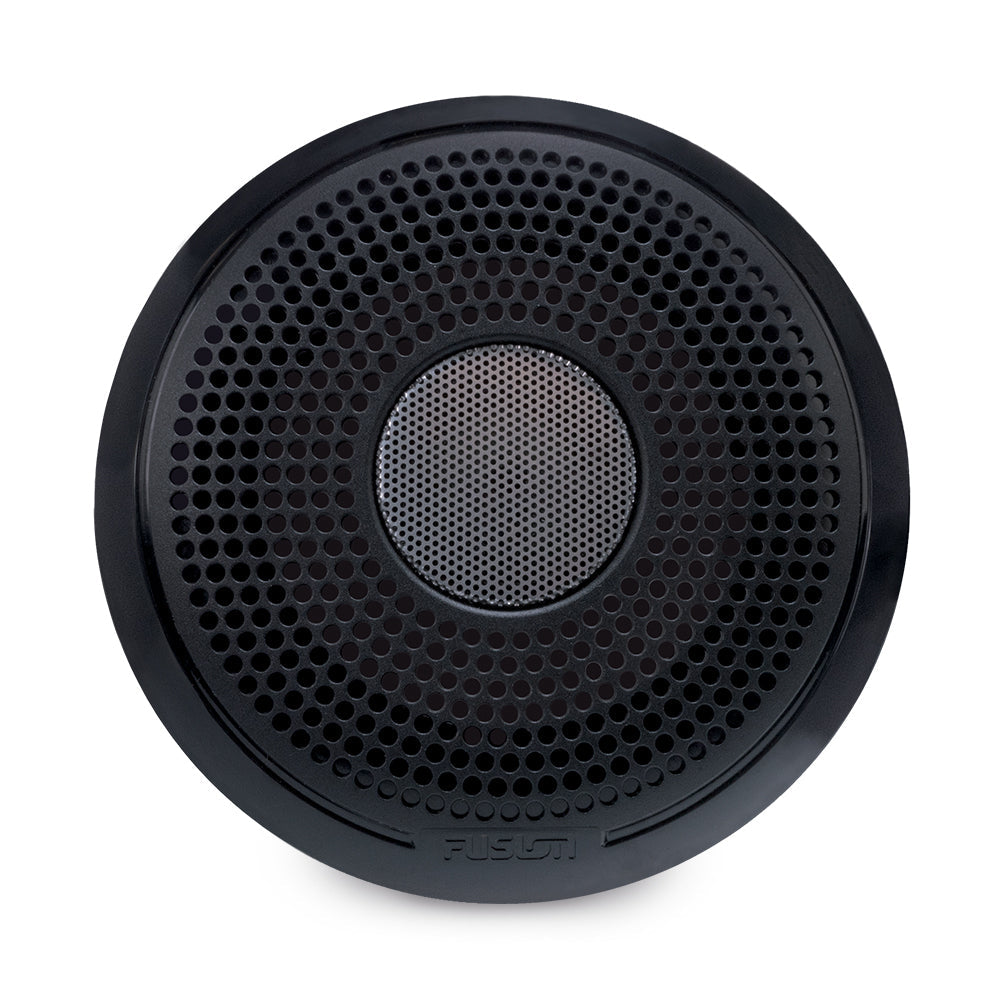

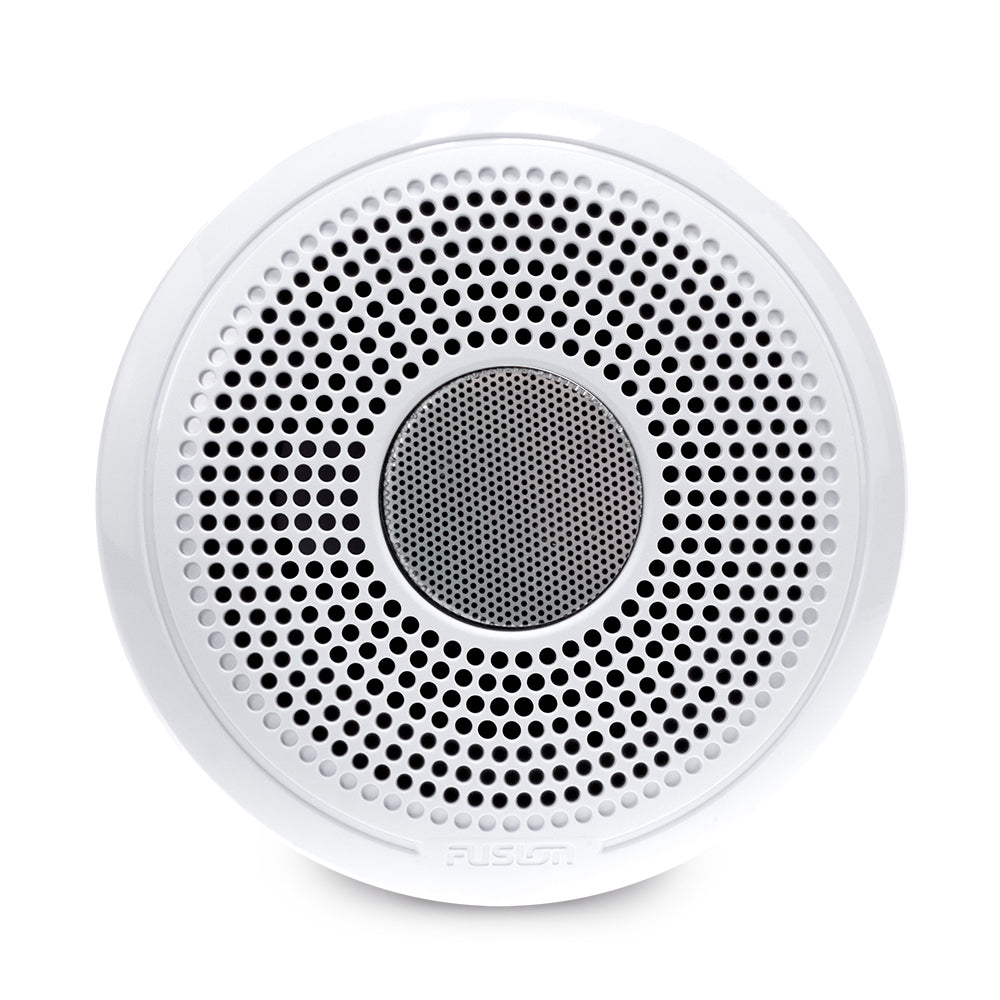

Fusion XS Series Classic Marine Speakers

SKU: 010-02199-00
$185.00

Pickup available at Southport Yacht Club, Macarthur Parade

Usually ready in 2-4 days

View store information

Description

EXPERIENCE SOUND AND COLOR

Enjoy high-performance acoustics, enhanced protection from the environment at a midrange price point with the XS Series speakers from Fusion.

  • The injection-molded polypropylene cone provides clean, clear audio reproduction.
  • The aluminum dome tweeter provides a smooth upper frequency response and increased efficiency.
  • With an increase in real power, the voice coil provides a high-quality sound experience.
  • The speakers are available in 4”, 6.5” and 7.7” designs with both classic and sports style2 grilles.
  • Engineered to last season after season, the speakers include a 3-year warranty.

DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion, the XS Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration, and UV.

DESIGNED TO COMPLY WITH ISO12216
Tested to international standards for pressure and water ingress, the XS Series speakers are designed and built for superior quality and robustness.

QUALITY MATERIALS AND ACOUSTIC ENGINEERING
The XS Series speakers incorporate high-quality materials and marine-specific design elements. This communicates not only their enhanced aesthetics but also their ability to reproduce high-performance audio while out on the water.

INJECTION-MOLDED POLYPROPYLENE CONE (IMPP)
By using a translucent, water-resistant IMPP cone, we can incorporate consistent multicolor illumination1. It also improves the robustness of the speaker, allowing for clean, clear audio reproduction.

ALUMINUM DOME TWEETER
The aluminum dome tweeter provides a smooth upper frequency response and increased efficiency, which deliver crystal-clear music reproduction.

OVERHUNG VOICE COIL
The overhung design reduces distortion and increases power and efficiency to deliver a truly high-quality sound experience.

FULLY SEALED CROSSOVER COMPONENTS
Fully sealed crossover components provide increased protection from the harsh marine environment. This delivers an improved frequency response at the crossover point for a detailed audio spectrum and a new level of acoustic performance.

OPEN BASKET CONSTRUCTION
The optimized open back design allows for extended power handling and versatile mounting options with reduced mounting depth.

CLASSIC STYLE SPEAKERS

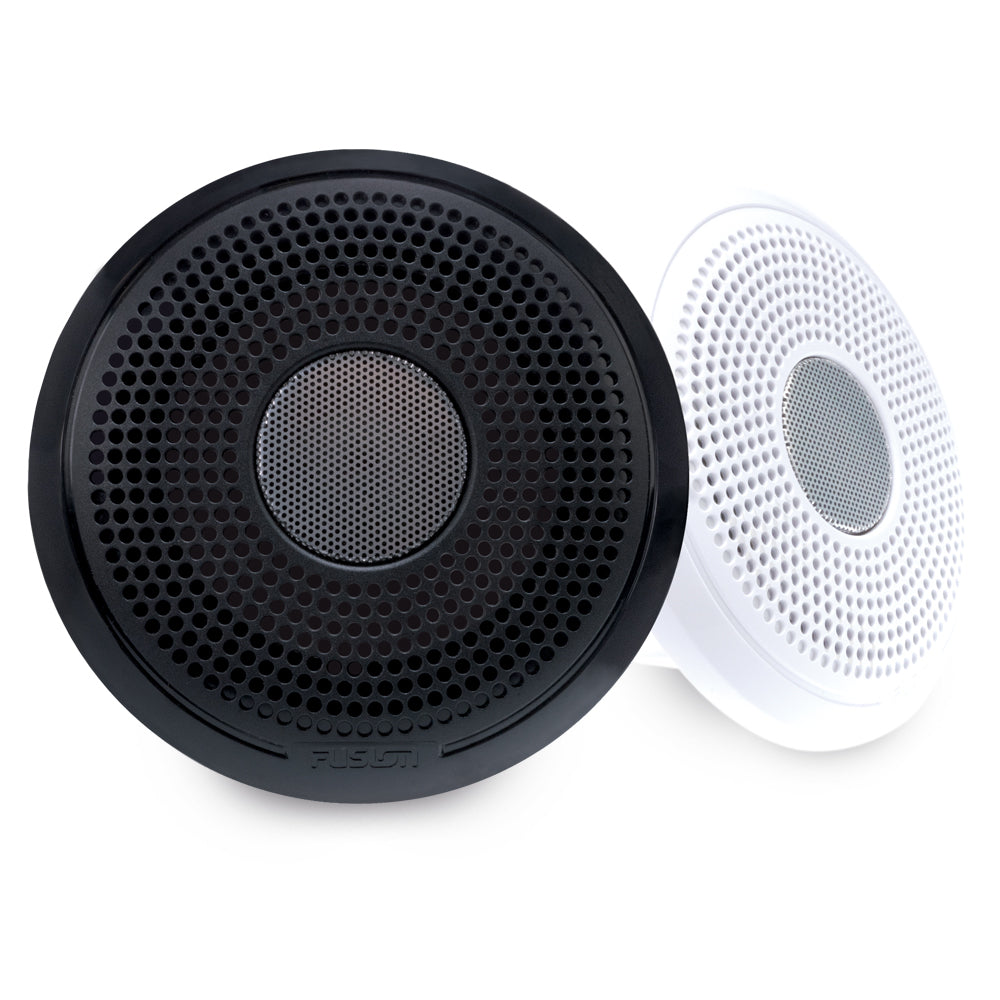

The XS Series classic style speakers are available in 4”, 6.5” and 7.7” sizes with interchangeable classic white/classic black grilles for a timeless, elegantly styled finish to blend with the aesthetics of your boat.
General

SPECIFICATIONS
Physical dimensions (Diameter x Depth) 4" Classic: 5.31" x 2.68" (135 x 68 mm)
Water and dust rating IP65
Configuration Coaxial
Speaker size XS-F40CWB: 4"
Peak power (Watts) 120 W
RMS power (Watts) 30 W
Sensitivity (1 W / 1 m) 87 dB
Frequency response 100 Hz-18 kHz
Nominal impedance 4 ohms
Recommended amplifier power (RMS) 15-80 W/Ch
LED lighting No
Operating temperature range 32° to 122° F (0° to 50° C)
Voice coil diameter 1"
Cone material Polypropylene cone with rubber surround
Tweeter type Aluminum dome
Compass-safe distance 100.5" (255 cm)
Warranty 3 years



MOUNTING DIMENSIONS
Mounting diameter clearance 3.90" (99 mm)
Mounting depth clearance 2.13" (54 mm)



OPTIMUM ENCLOSURE RECOMMENDATIONS
Sealed Enclosure Volume 0.14 cubic ft. (4 L)

1Fully filled with absorption material



What's in the Box?

4" 120-watt Classic Marine Speaker

  • One pair of XS-F40CWB speakers
  • 12 Phillips stainless steel mounting screws (3.5 mm x 25.4 mm (6 gauge x 1”))
  • Speaker grilles (1 classic white/1 classic black)
  • Documentation
