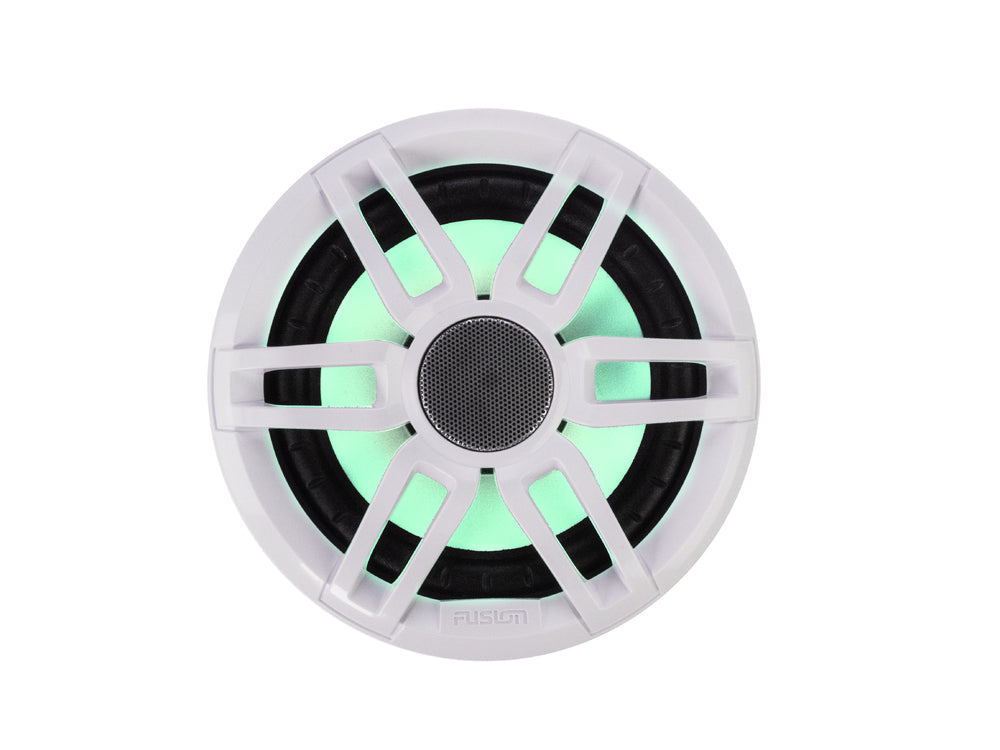

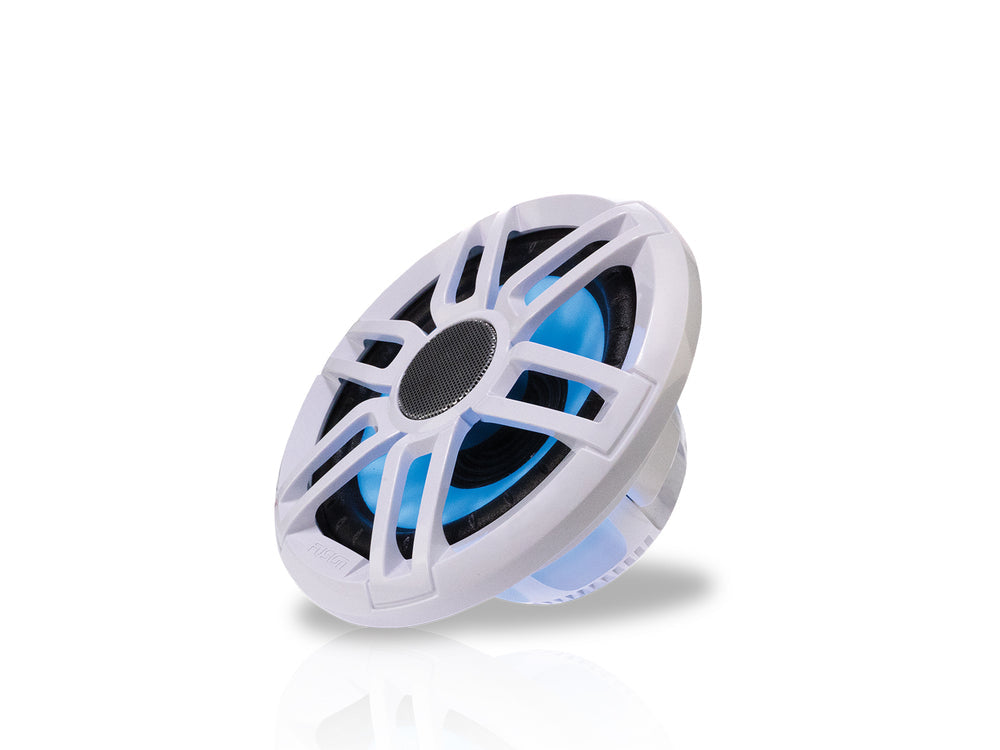

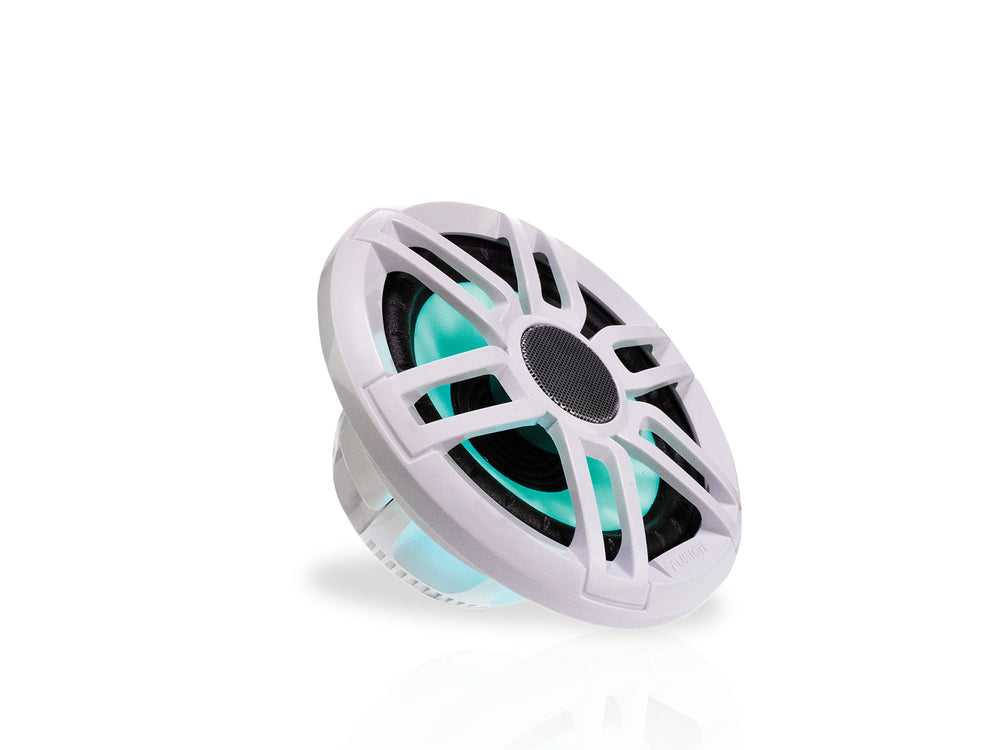

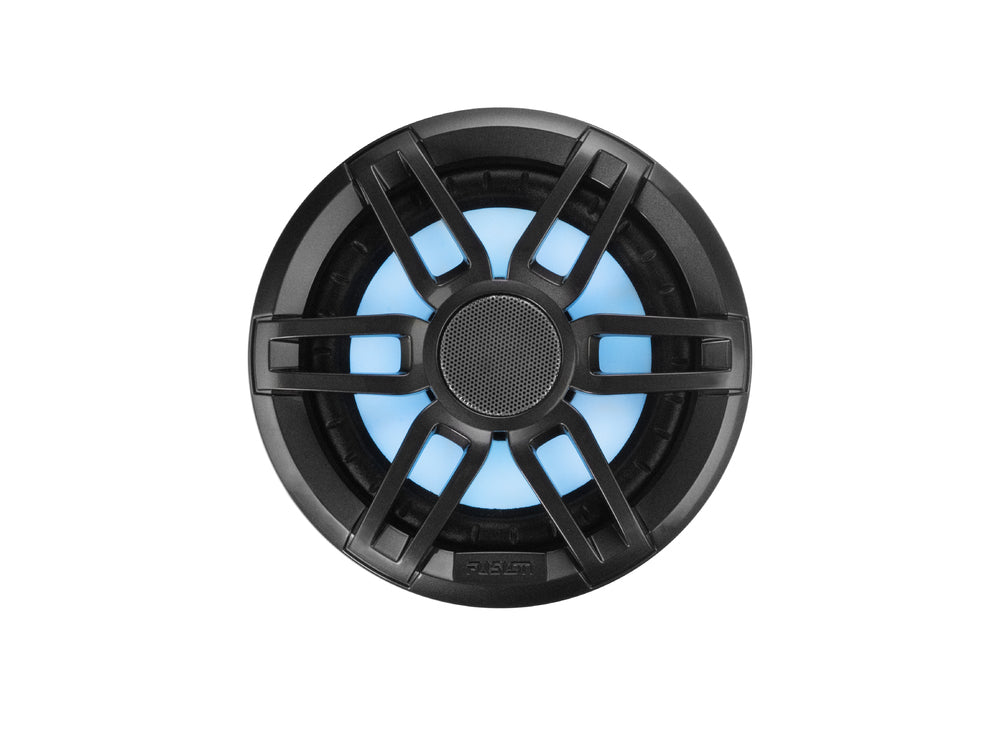

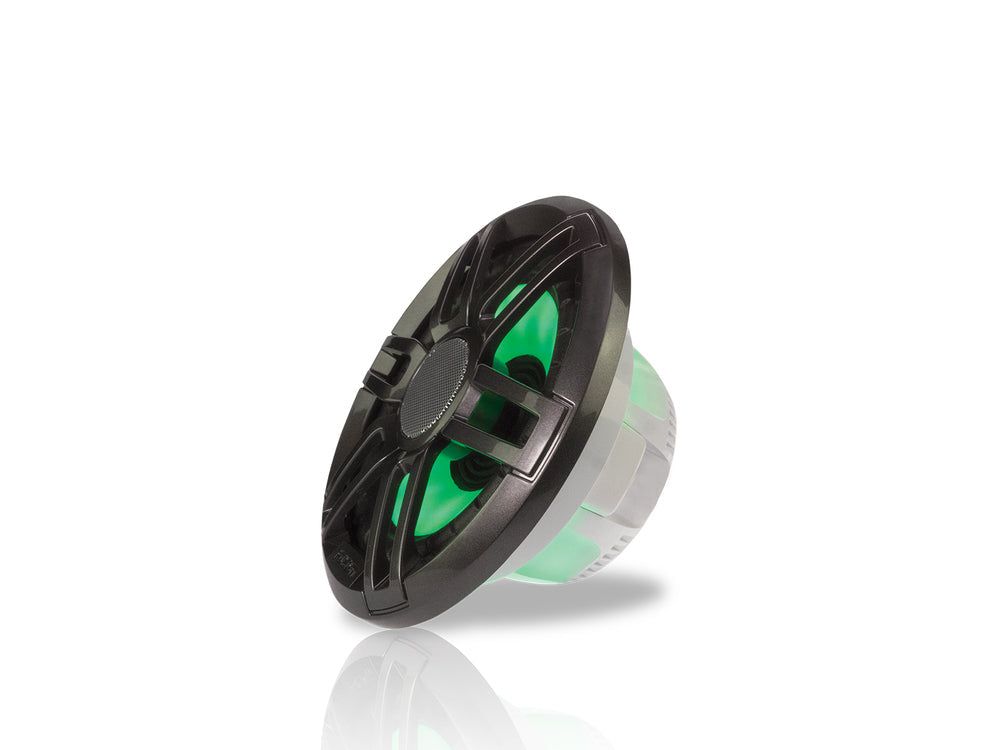

Fusion XS Series Sports Marine Speakers

SKU: 010-02196-20
$309.00

Size

Pickup available at Southport Yacht Club, Macarthur Parade

Usually ready in 2-4 days

View store information

Description

EXPERIENCE SOUND AND COLOR

Enjoy high-performance acoustics, enhanced protection from the environment and multicolor RGB LED lighting1 all at a midrange price point with the XS Series speakers from Fusion.

  • Experience multicolor RGB LED lighting1 to brighten up your boating experience.
  • The injection-molded polypropylene cone provides clean, clear audio reproduction.
  • The aluminum dome tweeter provides a smooth upper frequency response and increased efficiency.
  • With an increase in real power, the voice coil provides a high-quality sound experience.
  • The speakers are available in 4”, 6.5” and 7.7” designs with both classic and sports style2 grilles.
  • Engineered to last season after season, the speakers include a 3-year warranty.

DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion, the XS Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.

DESIGNED TO COMPLY WITH ISO12216
Tested to international standards for pressure and water ingress, the XS Series speakers are designed and built for superior quality and robustness.

QUALITY MATERIALS AND ACOUSTIC ENGINEERING
The XS Series speakers incorporate high-quality materials and marine-specific design elements. This communicates not only their enhanced aesthetics but also their ability to reproduce high-performance audio while out on the water.

INJECTION-MOLDED POLYPROPYLENE CONE (IMPP)
By using a translucent, water-resistant IMPP cone, we can incorporate consistent multicolor illumination1. It also improves the robustness of the speaker, allowing for clean, clear audio reproduction.

ALUMINUM DOME TWEETER
The aluminum dome tweeter provides a smooth upper frequency response and increased efficiency, which deliver crystal-clear music reproduction.

OVERHUNG VOICE COIL
The overhung design reduces distortion and increases power and efficiency to deliver a truly high-quality sound experience.

FULLY SEALED CROSSOVER COMPONENTS
Fully sealed crossover components provide increased protection from the harsh marine environment. This delivers an improved frequency response at the crossover point for a detailed audio spectrum and a new level of acoustic performance.

OPEN BASKET CONSTRUCTION
The optimized open back design allows for extended power handling and versatile mounting options with reduced mounting depth.

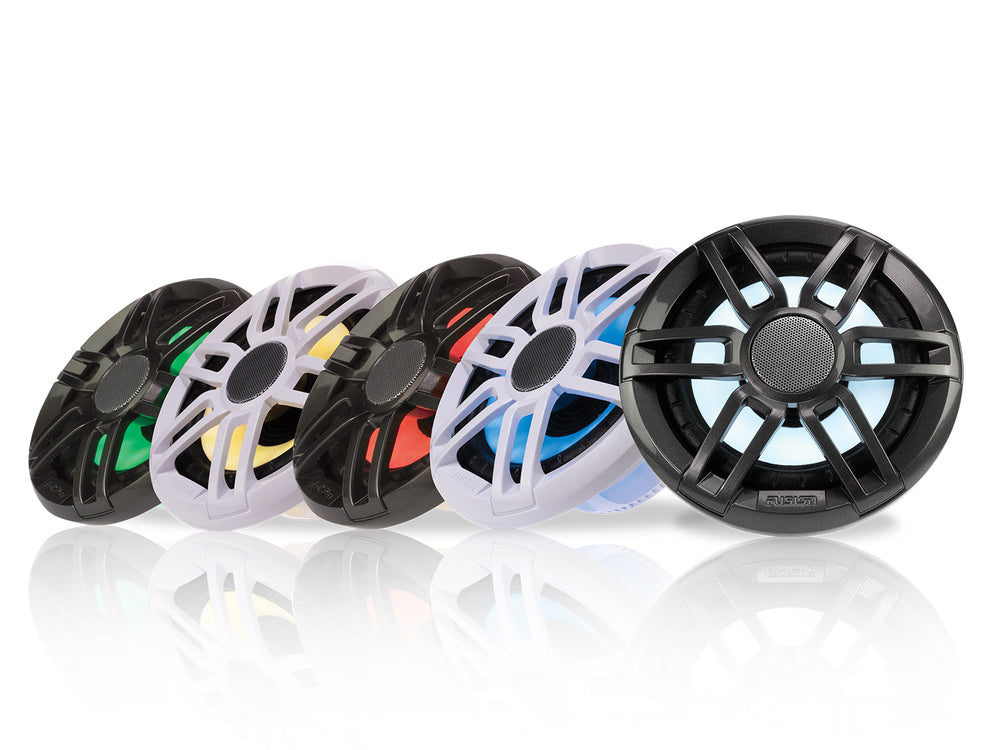

MULTICOLOR RGB LED LIGHTING
The sports style XS Series speakers with RGB LED lighting provide bright and even LED illumination in a wide range of colors, letting you choose any color to match the mood, set the tone or complement your music to enhance your audio entertainment experience.

CONTROLLING THE RGB LIGHTING
Control the color (static or dynamic), brightness, light mode and speed by using the optional MS-RGBRC wireless remote control (sold separately).

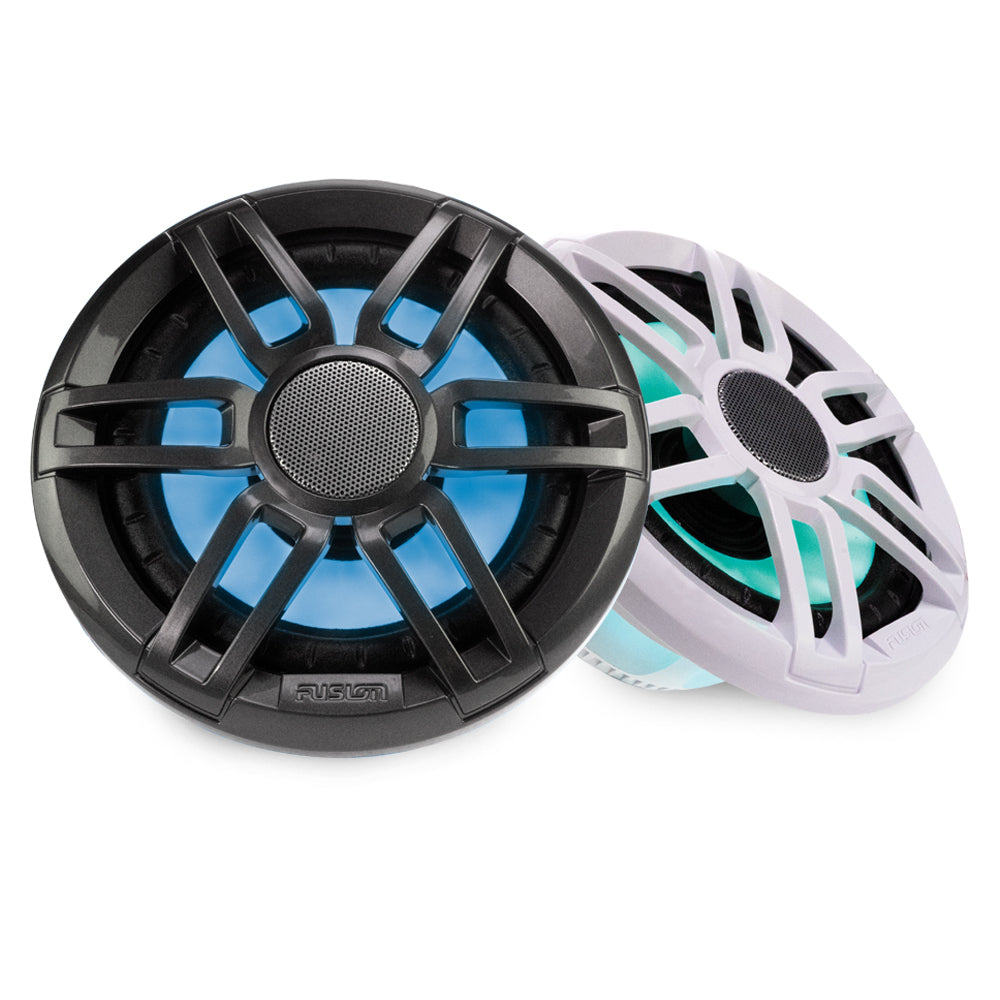

SPORTS STYLE SPEAKERS WITH RGB LED LIGHTING

The XS Series sports style speakers with RGB LED lighting are available in 6.5” and 7.7” sizes with interchangeable sports white/sports gray grilles and feature multicolor illumination options.

SPORTS STYLE SPEAKERS
The XS Series sports style speakers are available in 6.5” and 7.7” sizes with interchangeable sports white/sports gray grilles for an attractive modern finish.
General

SPECIFICATIONS
Physical dimensions (Diameter x Depth) 7.7" Sports: 7.72" x 3.82" (196 x 97 mm)
6.5" Sports: 6.97" x 3.27" (177 x 83 mm)
Water and dust rating IP65
Configuration Coaxial
Speaker size XS-F77CWB / XS-FL77SPGW: 7.7"
XS-F65CWB / XS-FL65SPGW: 6.5"
Peak power (Watts) 7.7" Speaker: 240 W
6.5" Speaker: 200 W
RMS power (Watts) 7.7" Speaker: 60 W
6.5" Speaker: 50 W
Sensitivity
(1 W / 1 m)
7.7" Speaker: 92 dB
6.5" Speaker: 91 dB
Frequency response 7.7" Speaker: 70 Hz-18 kHz
6.5" Speaker: 80 Hz-18 kHz
Nominal impedance 4 ohms
Recommended amplifier power (RMS) 7.7" Speaker: 25-200 W/Ch
6.5" Speaker: 20-150 W/Ch
LED lighting Yes (RGB; sports-style only)
LED supply voltage 10.8-16 VDC (sports-style only)
LED load current @ 14.4 VDC 150 mA (sports-style only)
Operating temperature range 32° to 122° F (0° to 50° C)
Voice coil diameter 7.7": 1.18"
6.5": 1.18"
Operating temperature range 7.7" / 6.5": Polypropylene cone with cloth surround
Tweeter type Aluminum dome
Compass-safe distance 7.7": 157.5" (400 cm)
6.5": 122" (310 cm)
Warranty 3 years



MOUNTING DIMENSIONS
Mounting diameter clearance 7.7": 6.38" (162 mm)
6.5": 5.31" (135 mm)
Mounting depth clearance 7.7": 3.03" (77 mm)
6.5": 2.64" (67 mm)



OPTIMUM ENCLOSURE RECOMMENDATIONS
Sealed enclosure volume1 7.7": 0.35 cubic ft (10 L)
6.5": 0.28 cubic ft (8 L)
1 filled with absorption material



What's in the Box?

6.5" 200-watt Sports Marine Speaker with RGB LED Lighting

  • One pair of XS-FL65SPGW speakers
  • 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm / 8 gauge x 1”)
  • Speaker grilles (1 sports gray/1 sports white)
  • Documentation

7.7" 240-watt Sports Marine Speaker with RGB LED Lighting

  • One pair of XS-FL77SPGW speakers
  • 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm / 8 gauge x 1”)
  • Speaker grilles (1 sports gray/1 sports white)
  • Documentation
